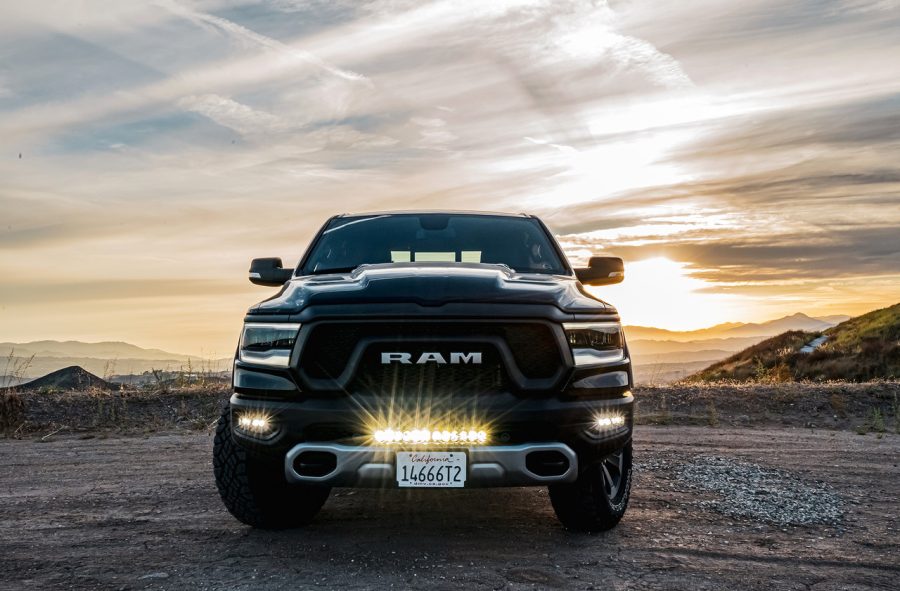

20″ OnX6+ LED Light Bar Front Bumper Kit for RAM 1500 Rebel (2019–2024)

The Baja Designs OnX6+ 20″ Bumper Light Bar Kit is designed specifically for the RAM 1500 Rebel, combining maximum light output with a factory-integrated look.

The kit includes a 20-inch OnX6+ LED bar, which uses a combination of High Speed Spot reflectors and Driving/Combo optics. This provides excellent illumination both at long distances and in the near periphery in front of the vehicle.

The LED bar has two modes – High Beam and Low Beam, allowing you to choose between maximum output and lower intensity depending on driving conditions.

The kit includes all the mounting brackets and hardware needed for easy installation and preserves the vehicle’s factory look.

💡 Driving/Combo – Combination Beam Pattern

OnX6+ uses a combination of:

• High Speed Spot reflectors for maximum reach
• Driving/Combo optics for wide peripheral illumination

Operating modes

• High Beam
• Low Beam

Advantages:

• Excellent long-distance visibility
• Wide illumination directly in front of the vehicle
• Suitable for off-roading, expeditions and high-speed driving

📦 What’s in the Box

• 1 × Baja Designs OnX6+ 20″ LED bar – Driving/Combo, Clear
• Mounting brackets
• All necessary fasteners

Note: Wiring kit not included. A Hi-Low Dongle.

⚙️ Technical specifications

OnX6+ 20″ LED bar

• 💡 Light output:
  • 24,920 raw lumens – High Beam
  • 18,460 raw lumens – Low Beam
• ⚡ Power:
  • 216 W – High Beam
  • 160 W – Low Beam
• 🔌 Current draw:
  • 16.6 A – High Beam
  • 12.0 A – Low Beam
• 🔦 Beam pattern: Driving/Combo
• 🌙 Operating modes: High Beam / Low Beam
• 💡 LED technology
• 🔢 Number of LEDs: 12
• ⚪ Lens color: Clear
• ⚫ Housing color: Black
• 🛠️ Housing material: Aircraft Grade Aluminum with Mil-Spec hard anodized finish
• 🧱 Bezel material: CNC-machined aluminum (Billet Machined Aluminum)
• 🪟 Lens material: Hard-coated polycarbonate
• 🔩 Mounting hardware material: Stainless steel
• ⚡ Overvoltage protection: Built-in
• ⏳ Average service life: 49,930 hours

📏 Dimensions

• 📏 Length: 20″ (50.8 cm)
• 📏 Height: 2.69″ (6.83 cm)
• 📏 Depth: 4.29″ (10.90 cm)
• ⚖️ Weight: 7.85 lb (3.56 kg)

🛡️ Baja Designs Technologies

• uService® – replaceable lenses and optics
• ClearView® – maximum light exactly where it’s needed
• MoistureBlock™ – protection against water, dust and moisture ingress
• DirectSink™ – efficient heat dissipation technology
• 5000K Daylight – natural color temperature that reduces driver fatigue

🛡️ Standards and Protection

• ✅ IP69K – water and dust protection, suitable for high-pressure washing
• ✅ IK10 – high resistance to mechanical impact
• ✅ Meets the requirements of MIL-STD-810G

🚗 Compatibility

Suitable for:

• RAM 1500 Rebel (2019–2024)

⚠️ Important

• The package is designed for the RAM 1500 Rebel (2019–2024).
• Wiring harness not included. A Hi-Low Dongle is provided.
• The LED bar operates in High Beam and Low Beam modes.
• The light output of 24,920 / 18,460 lumens is stated by the manufacturer as raw lumens.
• On RAM 1500 Rebel EcoDiesel 3.0L Turbo Diesel models with a factory intercooler and Active Grille Shutters (Active Grille Shutters), the kit can be installed, but the mounting bracket passes through the shutters, rendering them inoperable.

🏆 Warranty

🛡️ Limited lifetime warranty from Baja Designs.
