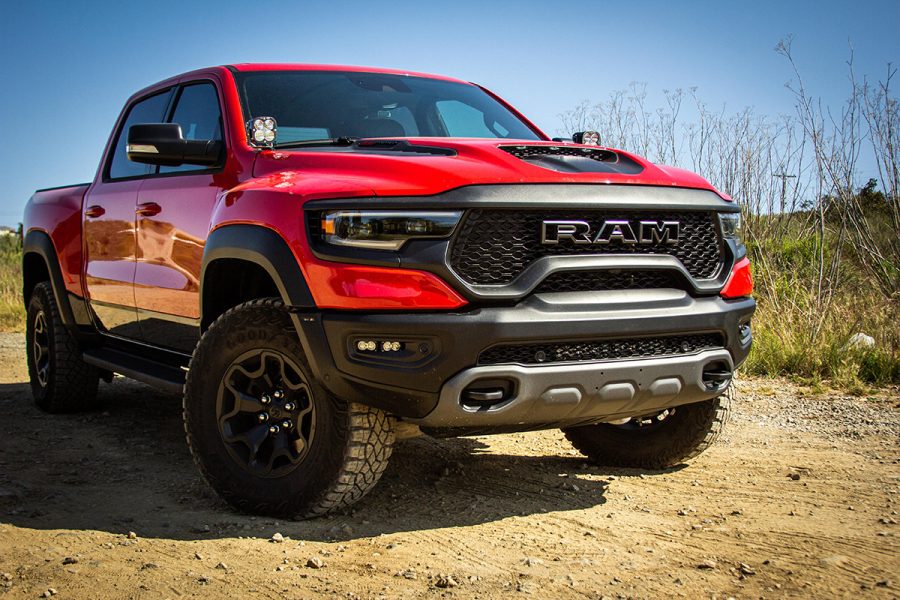

20″ OnX6+ LED Light Bar Front Bumper Kit for RAM 1500 TRX (2021–2024)

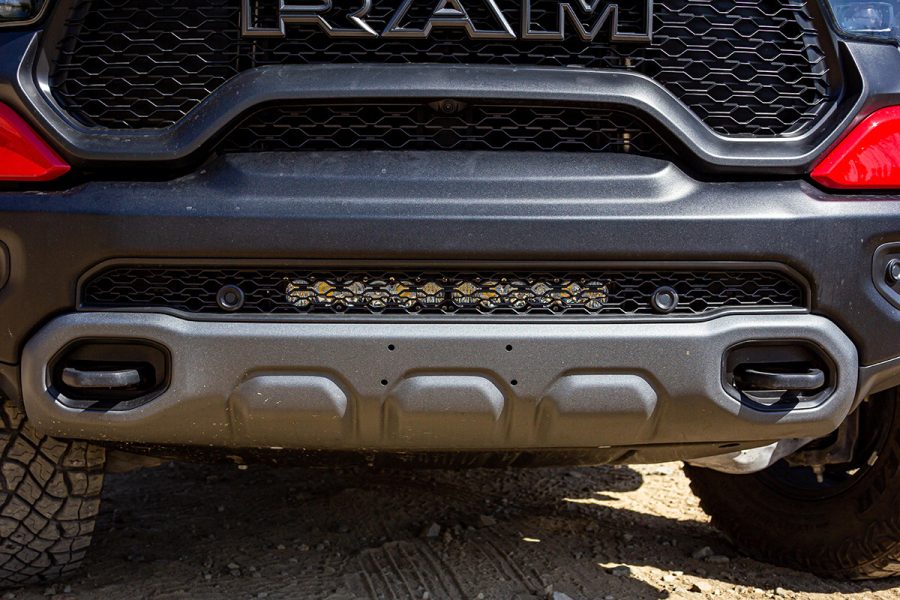

The Baja Designs OnX6+ 20″ Bumper Light Bar Kit is designed specifically for the RAM 1500 TRX, combining extremely high light output with a factory-integrated look.

The kit includes a 20-inch OnX6+ LED bar, which uses a combination of Driving/Combo optics and High Speed Spot reflectors, providing powerful illumination both at long distances and around the vehicle’s periphery.

The LED bar has two lighting modes – High Beam and Low Beam, allowing you to choose between maximum output and lower intensity depending on driving conditions.

The kit contains all the mounting brackets and hardware needed for trouble-free installation.

💡 Driving/Combo – Combination Beam Pattern

The Driving/Combo optics combine:

• High Speed Spot reflectors for maximum reach
• Wide peripheral illumination

Operating modes:

• High Beam
• Low Beam

Advantages:

• Excellent long-distance visibility
• Illumination of the area directly in front of the vehicle
• Wide peripheral coverage
• Suitable for off-roading and high-speed driving

📦 What’s in the Box

• 1 × Baja Designs OnX6+ 20″ LED bar – Driving/Combo, Clear
• Mounting brackets
• All necessary fasteners

Note: Wiring harness not included. A Hi-Low Dongle is provided with the kit.

⚙️ Technical specifications

OnX6+ 20″ LED bar

• 💡 Light output:
  • 24,920 raw lumens – High Beam
  • 18,460 raw lumens – Low Beam
• ⚡ Power:
  • 216 W – High Beam
  • 160 W – Low Beam
• 🔌 Current draw:
  • 16.6 A – High Beam
  • 12.0 A – Low Beam
• 🔦 Beam pattern: Driving/Combo
• 🌙 Operating modes: High Beam / Low Beam
• 💡 LED technology
• 🔢 Number of LEDs: 12
• ⚪ Lens color: Clear
• ⚫ Housing color: Black
• 🛠️ Housing material: Aircraft Grade Aluminum with Mil-Spec hard anodized finish
• 🪟 Lens material: Hard-coated polycarbonate
• 🔩 Mounting hardware material: Stainless steel
• 🧱 Bezel material: CNC-machined aluminum (Billet Machined Aluminum)
• ⚡ Overvoltage protection: Built-in
• ⏳ Average service life: 49,930 hours

📏 Dimensions

• 📏 Length: 20″ (50.8 cm)
• 📏 Height: 2.69″ (6.83 cm)
• 📏 Depth: 4.29″ (10.90 cm)
• ⚖️ Weight: 7.85 lb (3.56 kg)

🛡️ Baja Designs Technologies

• uService® – replaceable lenses and optics
• ClearView® – maximum light exactly where it’s needed
• MoistureBlock™ – protection against water, dust and moisture ingress
• DirectSink™ – efficient heat dissipation technology
• 5000K Daylight – natural color temperature that reduces driver fatigue

🛡️ Standards and Protection

• ✅ IP69K – water and dust protection, suitable for high-pressure washing
• ✅ IK10 – high resistance to mechanical impact
• ✅ Meets the requirements of MIL-STD-810G

🚗 Compatibility

Suitable for:

• RAM 1500 TRX (2021–2024)

⚠️ Important

• The kit is intended only for the RAM 1500 TRX (2021–2024).
• Wiring harness not included. A Hi-Low Dongle is provided.
• The LED bar operates in High Beam and Low Beam modes.
• The light output of 24,920 / 18,460 lumens is stated by the manufacturer as raw lumens.

🏆 Warranty

🛡️ Limited lifetime warranty from Baja Designs.
