20″ OnX6+ LED Light Bar Lower Front Grille Kit for RAM 2500/3500 (2019–2026)

The Baja Designs OnX6+ 20″ Lower Grille Light Bar Kit is designed specifically for the RAM 2500 and RAM 3500, providing maximum light output, professional mounting and a factory look.

The kit uses a 20-inch straight OnX6+ LED bar with Driving/Combo optics, which combine long-range and wide peripheral illumination. Thanks to the High Beam and Low Beam modes, you can choose between maximum brightness or lower output depending on driving conditions.

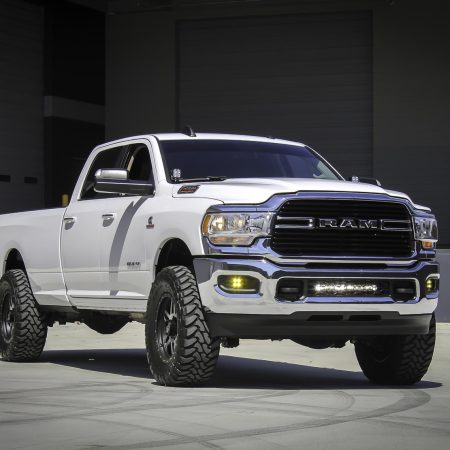

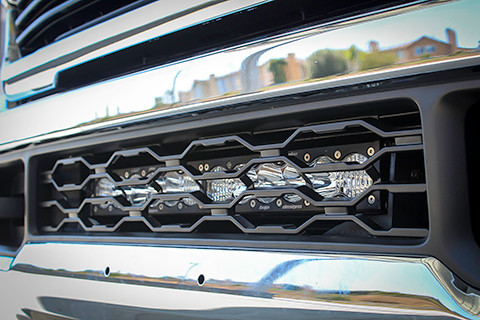

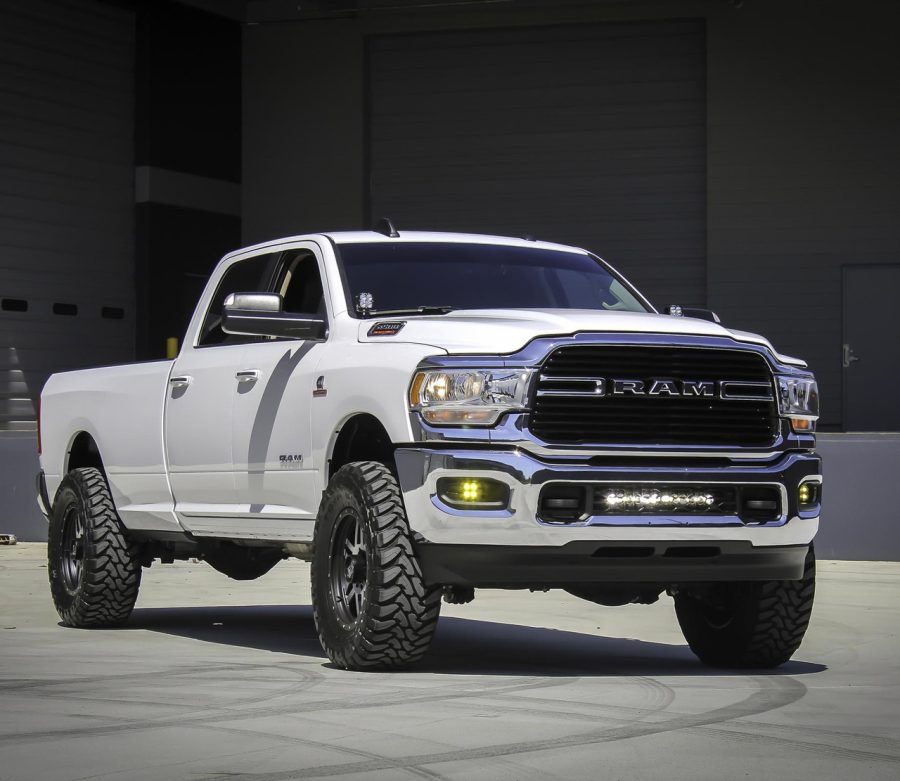

The LED bar mounts in the lower front grille, with no drilling or vehicle modifications required.

💡 Driving/Combo – Combination Beam Pattern

The Driving/Combo optics combine:

• Long-range Spot reflectors
• Wide peripheral illumination

Operating modes

• High Beam
• Low Beam

Advantages:

• Maximum long-distance visibility
• Wide illumination in front of the vehicle
• Suitable for off-roading, expeditions and night-time driving

📦 What’s in the Box

• 1 × Baja Designs OnX6+ 20″ LED bar – Driving/Combo, Clear
• 2 × Mounting brackets
• Wiring harness 640115
• All necessary fasteners

⚙️ Technical specifications

OnX6+ 20″ LED bar

• 💡 Light output:
  • 24,920 raw lumens (High)
  • 18,460 raw lumens (Low)
• ⚡ Power:
  • 216 W (High)
  • 160 W (Low)
• 🔌 Current draw:
  • 16.6 A (High)
  • 12.0 A (Low)
• 🔦 Beam pattern: Driving/Combo
• 🌙 Operating modes:
  • High Beam
  • Low Beam
• 💡 LED technology
• 🔢 Number of LEDs: 12
• 📏 Construction: Straight LED bar
• ⚪ Lens color: Clear
• ⚫ Housing color: Black
• 🛠️ Housing material: Aircraft Grade Aluminum with Mil-Spec hard anodized finish
• 🧱 Bezel material: CNC-machined aluminum (Billet Machined Aluminum)
• 🪟 Lens material: Hard-coated polycarbonate
• 🔩 Mounting hardware material: Stainless steel
• ⚡ Overvoltage protection: Built-in
• 🔌 Wiring harness description: Hi-Low Dongle
• ⏳ Average service life: 49,930 hours

📏 Dimensions

• 📏 Length: 20″ (50.8 cm)
• 📏 Height: 2.69″ (6.83 cm)
• 📏 Depth: 4.29″ (10.90 cm)
• ⚖️ Weight: 7.85 lb (3.56 kg)

🛡️ Baja Designs Technologies

• uService® – replaceable lenses and optics
• ClearView® – maximum light exactly where it’s needed
• MoistureBlock™ – protection against water, dust and moisture ingress
• DirectSink™ – efficient heat dissipation technology
• 5000K Daylight – natural color temperature that reduces driver fatigue

🛡️ Standards and Protection

• ✅ IP69K – water and dust protection, suitable for high-pressure washing
• ✅ IK10 – high resistance to mechanical impact
• ✅ Meets the requirements of MIL-STD-810G

🚗 Compatibility

Suitable for:

• RAM 2500 (2019–2026)
• RAM 3500 (2019–2026)

⚠️ Important

• Mounts in the lower front grille.
• No drilling, cutting or modifications to the vehicle.
• The light output is stated by the manufacturer as raw lumens.
• Features High Beam and Low Beam modes.

🏆 Warranty

🛡️ Limited lifetime warranty from Baja Designs.
