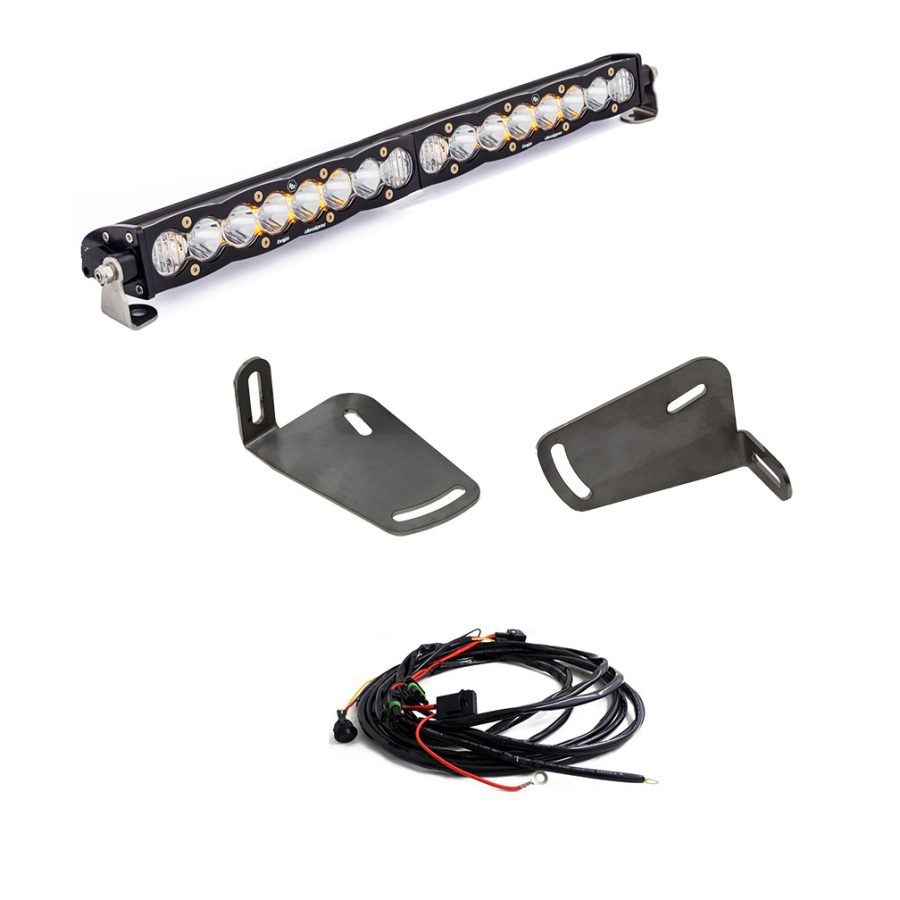

20″ S8 LED Light Bar Front Bumper Kit for RAM 1500 Rebel (2019–2024)

The Baja Designs S8 20″ Bumper Light Bar Kit is designed specifically for the RAM 1500 Rebel, combining a discreet look, high performance and a reliable design.

The kit includes a 20-inch S8 LED bar with Driving/Combo optics, which provides excellent illumination both at long distances and in the vehicle’s near periphery. Thanks to its high-efficiency reflectors, the S8 delivers impressive light output, suited for off-roading, expeditions and night-time driving.

In addition to the main lighting mode, the model also features an amber backlight (Backlight), which gives a distinctive look both when parked and when driving off-road.

The kit is designed specifically for this model and includes all the mounting components needed for trouble-free installation, while preserving the vehicle’s factory look.

💡 Driving/Combo – Combination Beam Pattern

The Driving/Combo optics combine:

• Long-range Spot reflectors
• Wide peripheral illumination

Operating modes

• Main lighting
• Amber backlight (Backlight)

Advantages:

• Excellent long-distance visibility
• Wide illumination directly in front of the vehicle
• Suitable for off-roading, expeditions and night-time driving

📦 What’s in the Box

• 1 × Baja Designs S8 20″ LED bar – Driving/Combo, Clear
• Mounting brackets
• All necessary fasteners

Note: Wiring kit not included.

⚙️ Technical specifications

S8 20″ LED bar

• 💡 Light output: 12,700 raw lumens
• ⚡ Power: 120 W
• 🔌 Current draw: 8.0 A
• 🔦 Beam pattern: Driving/Combo
• 🌙 Operating modes:
  • Main lighting
  • Amber backlight (Backlight)
• 💡 LED technology: Cree LED
• 🔢 Number of LEDs: 16
• ⚪ Lens color: Clear
• ⚫ Housing color: Black
• 🛠️ Housing material: Aircraft Grade Aluminum with Mil-Spec hard anodized finish
• 🧱 Bezel material: CNC-machined aluminum (Billet Machined Aluminum)
• 🪟 Lens material: Hard-coated polycarbonate
• 🔩 Mounting hardware material: Stainless steel
• ⚡ Overvoltage protection: Built-in
• ⏳ Average service life: 49,930 hours

📏 Dimensions

• 📏 Length: 20″ (50.8 cm)
• 📏 Height: 1.6″ (4.06 cm)
• 📏 Depth: 3″ (7.62 cm)
• ⚖️ Weight: 4.5 lb (2.04 kg)

🛡️ Baja Designs Technologies

• uService® – replaceable lenses and optics
• ClearView® – maximum light exactly where it’s needed
• MoistureBlock™ – protection against water, dust and moisture ingress
• DirectSink™ – efficient heat dissipation technology
• 5000K Daylight – natural color temperature that reduces driver fatigue

🛡️ Standards and Protection

• ✅ IP69K – water and dust protection, suitable for high-pressure washing
• ✅ IK10 – high resistance to mechanical impact
• ✅ Meets the requirements of MIL-STD-810G
• ✅ Patent No. D780,964

🚗 Compatibility

Suitable for:

• RAM 1500 Rebel (2019–2024)

⚠️ Important

• The kit is intended only for the RAM 1500 Rebel (2019–2024).
• Wiring harness not included and available separately.
• The LED bar features main lighting and an amber backlight (Backlight).
• The light output of 12,700 lumens is stated by the manufacturer as raw lumens.
• On RAM 1500 Rebel 3.0L EcoDiesel Turbo Diesel models with a factory intercooler and Active Grille Shutters (Active Grille Shutters), the mounting brackets pass through the shutters, which prevents them from working normally.

🏆 Warranty

🛡️ Limited lifetime warranty from Baja Designs.
