20″ S8 LED Light Bar Front Bumper Kit for RAM 1500 TRX (2021–2024)

The Baja Designs S8 20″ Bumper Light Bar Kit is designed specifically for the RAM 1500 TRX, combining modern design, high reliability and powerful illumination.

The kit includes a 20-inch S8 LED bar, equipped with Driving/Combo optics, which provide an excellent balance of long-distance reach and wide peripheral illumination. In addition to the main lighting mode, the model also features an amber backlight (Backlight), which gives the vehicle a distinctive look.

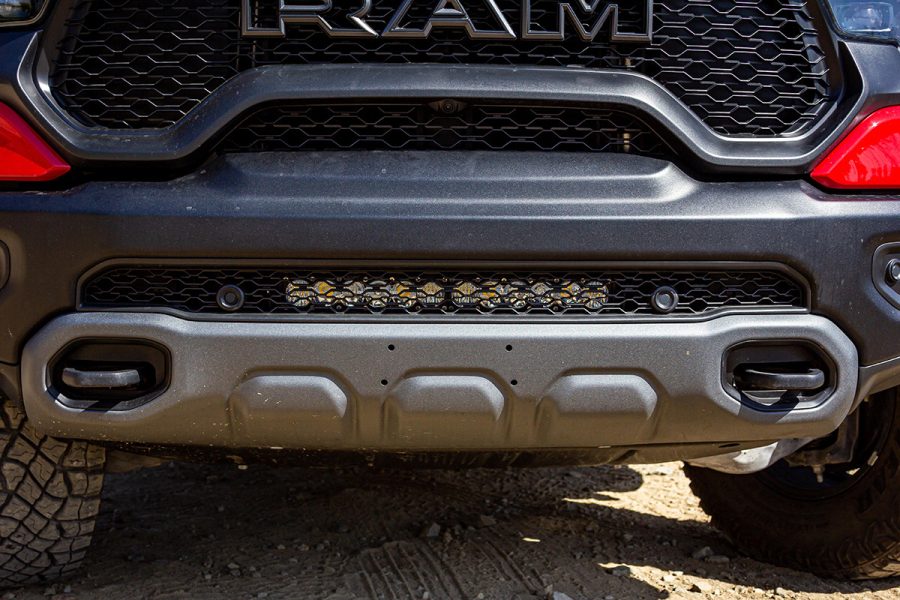

The kit is designed to preserve the bumper’s factory look and includes all the mounting brackets and hardware needed for easy installation.

💡 Driving/Combo – Combination Beam Pattern

The Driving/Combo optics combine:

• Long-range Spot reflectors
• Wide peripheral illumination

Operating modes:

• Main lighting
• Amber backlight (Backlight)

Advantages:

• Excellent long-distance visibility
• Illumination of the area directly in front of the vehicle
• Wide peripheral coverage
• Suitable for off-roading, expeditions and night-time driving

📦 What’s in the Box

• 1 × Baja Designs S8 20″ LED bar – Driving/Combo, Clear
• Mounting brackets
• All necessary fasteners

Note: Wiring harness not included.

⚙️ Technical specifications

S8 20″ LED bar

• 💡 Light output: 12,700 raw lumens
• ⚡ Power: 120 W
• 🔌 Current draw: 8.0 A
• 🔦 Beam pattern: Driving/Combo
• 🌙 Operating modes:
  • Main lighting
  • Amber backlight (Backlight)
• 💡 LED technology: Cree LED
• 🔢 Number of LEDs: 16
• ⚪ Lens color: Clear
• ⚫ Housing color: Black
• 🛠️ Housing material: Aircraft Grade Aluminum with Mil-Spec hard anodized finish
• 🪟 Lens material: Hard-coated polycarbonate
• 🧱 Bezel material: CNC-machined aluminum (Billet Machined Aluminum)
• 🔩 Mounting hardware material: Stainless steel
• ⚡ Overvoltage protection: Built-in
• ⏳ Average service life: 49,930 hours

📏 Dimensions

• 📏 Length: 20″ (50.8 cm)
• 📏 Height: 1.6″ (4.06 cm)
• 📏 Depth: 3″ (7.62 cm)
• ⚖️ Weight: 4.5 lb (2.04 kg)

🛡️ Baja Designs Technologies

• uService® – replaceable lenses and optics
• ClearView® – maximum light exactly where it’s needed
• MoistureBlock™ – protection against water, dust and moisture ingress
• DirectSink™ – efficient heat dissipation technology
• 5000K Daylight – natural color temperature that reduces driver fatigue

🛡️ Standards and Protection

• ✅ IP69K – water and dust protection, suitable for high-pressure washing
• ✅ IK10 – high resistance to mechanical impact
• ✅ Meets the requirements of MIL-STD-810G
• ✅ Patent No. D780,964

🚗 Compatibility

Suitable for:

• RAM 1500 TRX (2021–2024)

⚠️ Important

• The kit is intended only for the RAM 1500 TRX (2021–2024).
• Wiring harness not included and available separately.
• The LED bar features main lighting and an amber backlight (Backlight).
• The light output of 12,700 lumens is stated by the manufacturer as raw lumens.

🏆 Warranty

🛡️ Limited lifetime warranty from Baja Designs.
