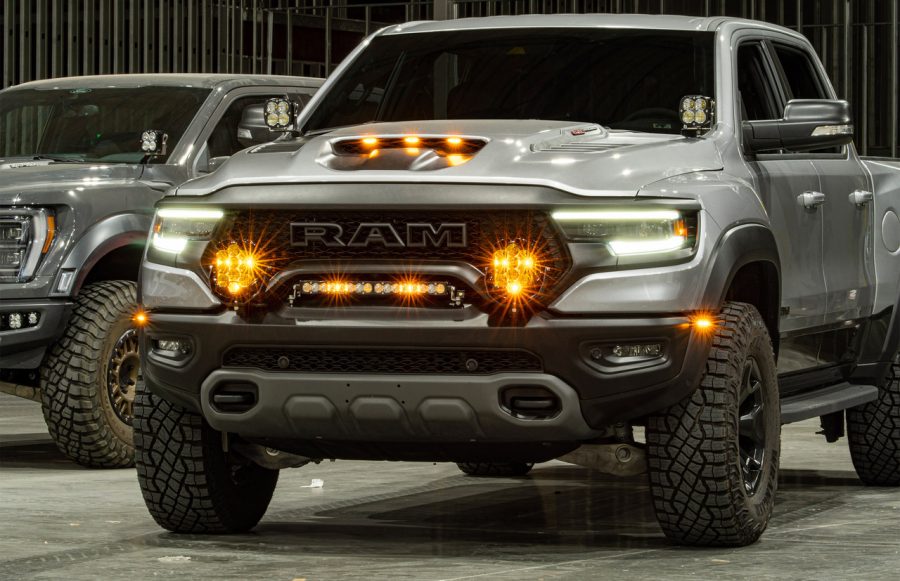

20″ S8 LED Light Bar Front Grille Kit for RAM 1500 Rebel (2019–2024) and RAM 1500 TRX (2021–2024)

The Baja Designs S8 20″ Grille Light Kit is designed specifically for the RAM 1500 Rebel and RAM 1500 TRX, combining discreet mounting, high performance and exceptional build quality.

The kit uses a 20-inch S8 LED bar with Driving/Combo optics, which provides excellent illumination both at long distances and in the vehicle’s near periphery. Thanks to the purpose-built mounting brackets, the LED bar mounts to the factory points with no cutting, drilling or other modifications to the grille.

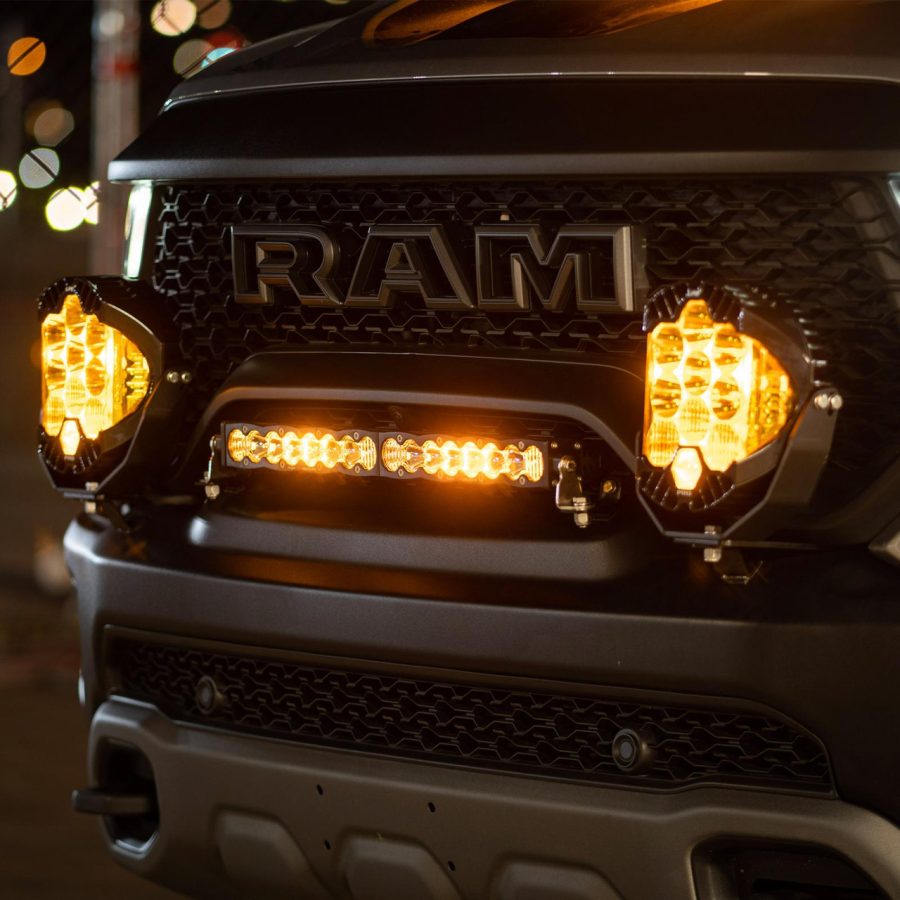

In addition to the main lighting, the S8 also features an amber backlight (Backlight), which gives the vehicle a distinctive look.

The kit includes all the components needed for easy installation, including a wiring harness, mounting brackets and hardware.

💡 Driving/Combo – Combination Beam Pattern

The Driving/Combo optics combine:

• Long-range Spot reflectors
• Wide peripheral illumination

Operating modes

• Main lighting
• Amber backlight (Backlight)

Advantages:

• Excellent long-distance visibility
• Wide illumination around the vehicle
• Suitable for off-roading, expeditions and night-time driving

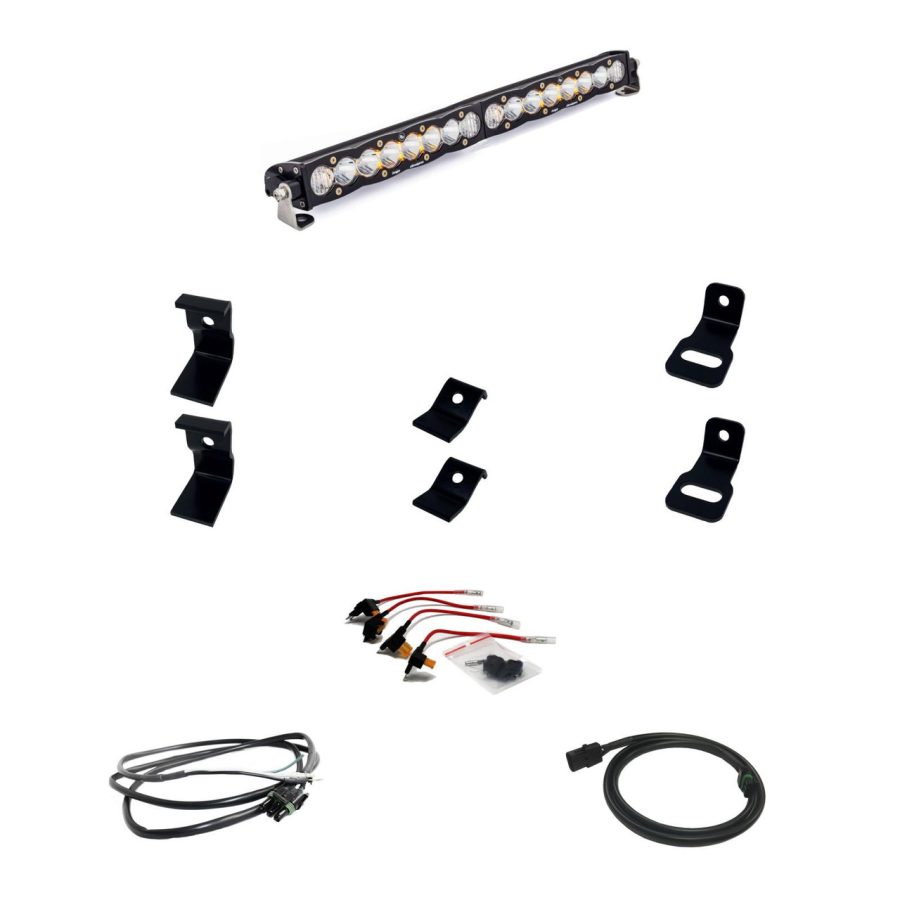

📦 What’s in the Box

• 1 × Baja Designs S8 20″ LED bar – Driving/Combo, Clear
• Front grille mounting brackets
• Wiring kit
• All necessary fasteners

⚙️ Technical specifications

S8 20″ LED bar

• 💡 Light output: 12,700 raw lumens
• ⚡ Power: 120 W
• 🔌 Current draw: 8.0 A
• 🔦 Beam pattern: Driving/Combo
• 🌙 Operating modes:
  • Main lighting
  • Amber backlight (Backlight)
• 💡 LED technology: Cree LED
• 🔢 Number of LEDs: 16
• ⚪ Lens color: Clear
• ⚫ Housing color: Black
• 🛠️ Housing material: Aircraft Grade Aluminum with Mil-Spec hard anodized finish
• 🧱 Bezel material: CNC-machined aluminum (Billet Machined Aluminum)
• 🪟 Lens material: Hard-coated polycarbonate
• 🔩 Mounting hardware material: Stainless steel
• ⚡ Overvoltage protection: Built-in
• ⏳ Average service life: 49,930 hours

📏 Dimensions

• 📏 Length: 20″ (50.8 cm)
• 📏 Height: 1.6″ (4.06 cm)
• 📏 Depth: 3″ (7.62 cm)
• ⚖️ Weight: 4.5 lb (2.04 kg)

🛡️ Baja Designs Technologies

• uService® – replaceable lenses and optics
• ClearView® – maximum light exactly where it’s needed
• MoistureBlock™ – protection against water, dust and moisture ingress
• DirectSink™ – efficient heat dissipation technology
• 5000K Daylight – natural color temperature that reduces driver fatigue

🛡️ Standards and Protection

• ✅ IP69K – water and dust protection, suitable for high-pressure washing
• ✅ IK10 – high resistance to mechanical impact
• ✅ Meets the requirements of MIL-STD-810G
• ✅ Patent No. D780,964

🚗 Compatibility

Suitable for:

• RAM 1500 Rebel (2019–2024)
• RAM 1500 TRX (2021–2024)

⚠️ Important

• Installation uses the vehicle’s factory points.
• No cutting, drilling or modifications to the front grille required.
• The kit includes a wiring harness for installation.
• The LED bar features main lighting and an amber backlight (Backlight).
• The light output of 12,700 lumens is stated by the manufacturer as raw lumens.

🏆 Warranty

🛡️ Limited lifetime warranty from Baja Designs.
