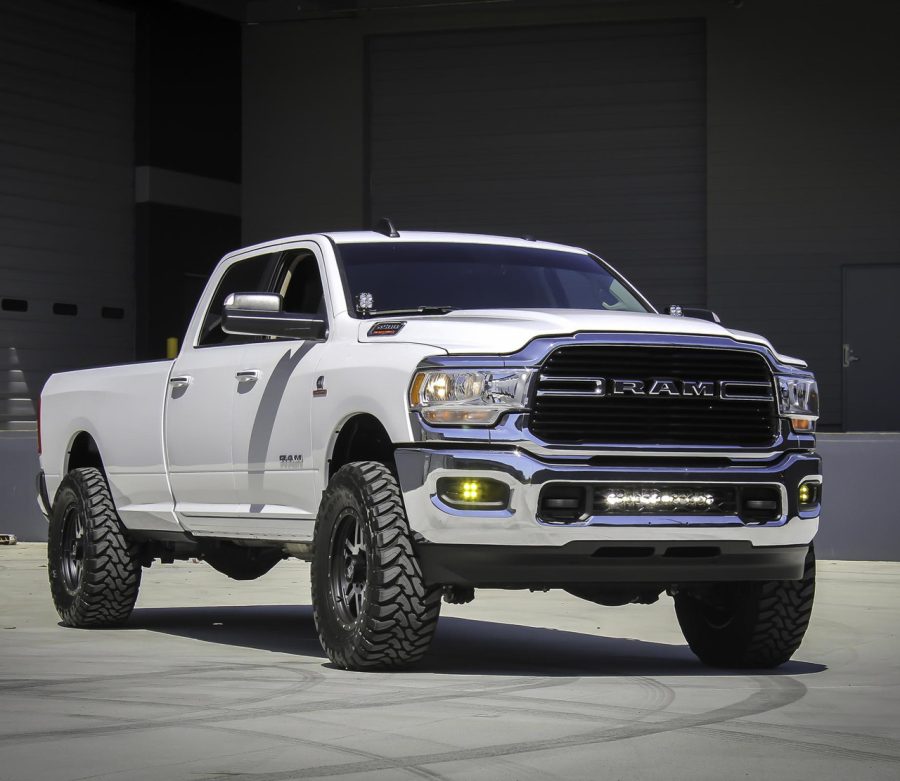

30″ S8 LED Light Bar Lower Front Grille Kit for RAM 2500/3500 (2019–2026)

The Baja Designs S8 30″ Lower Grille Light Bar Kit is designed specifically for the RAM 2500 and RAM 3500, offering discreet mounting, maximum performance and a factory look.

The kit uses a 30-inch S8 LED bar with Driving/Combo optics, which combine long-range and wide peripheral illumination. In addition to the main lighting, the S8 also features an amber backlight (Backlight), which gives the vehicle a distinctive look.

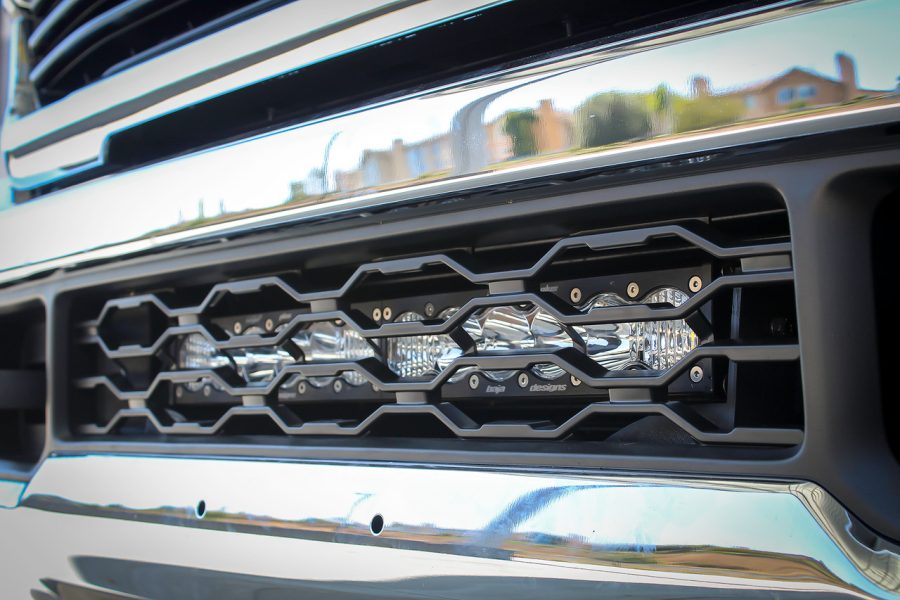

The LED bar mounts in the lower front grille, with no drilling, cutting or other vehicle modifications required. The kit includes all the components needed for easy installation.

💡 Driving/Combo – Combination Beam Pattern

The Driving/Combo optics combine:

• Long-range Spot reflectors
• Wide peripheral illumination

Operating modes

• Main lighting
• Amber backlight (Backlight)

Advantages:

• Excellent long-distance visibility
• Wide illumination directly in front of the vehicle
• Suitable for off-roading, expeditions and night-time driving

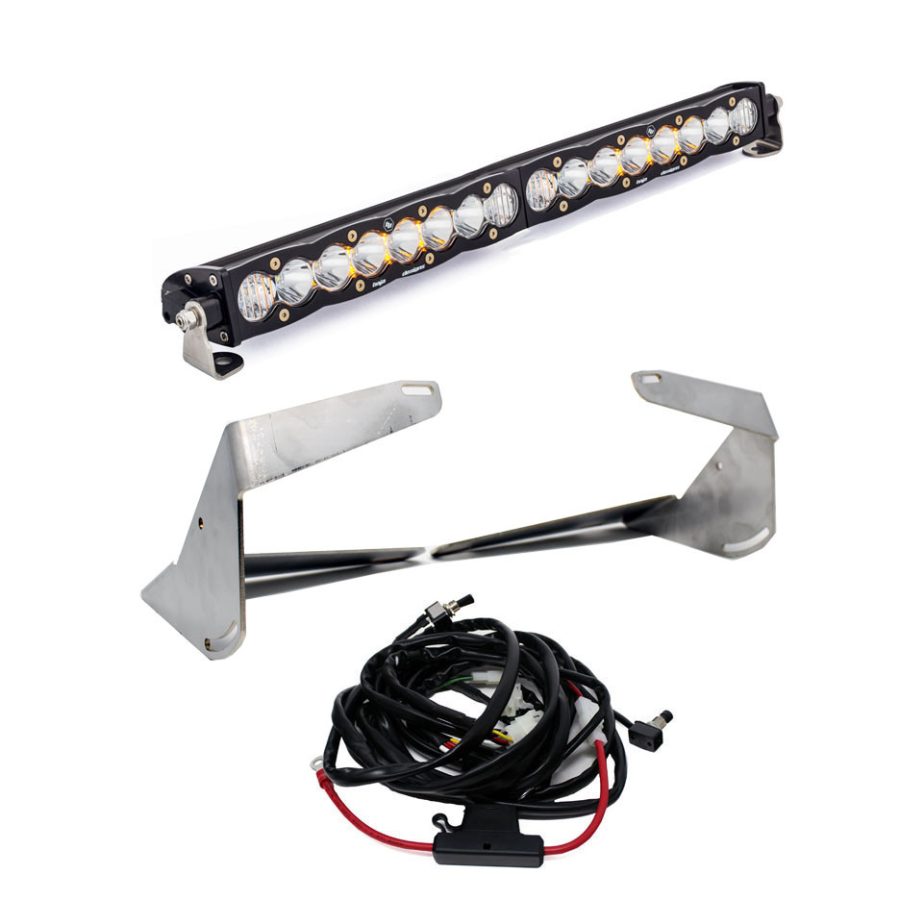

📦 What’s in the Box

• 1 × Baja Designs S8 30″ LED bar – Driving/Combo, Clear
• Lower front grille mounting brackets
• Wiring kit
• All necessary fasteners

⚙️ Technical specifications

S8 30″ LED bar

• 💡 Light output: 19,050 raw lumens
• ⚡ Power: 180 W
• 🔌 Current draw: 12.0 A
• 🔦 Beam pattern: Driving/Combo
• 🌙 Operating modes:
  • Main lighting
  • Amber backlight (Backlight)
• 💡 LED technology: Cree LED
• 🔢 Number of LEDs: 24
• ⚪ Lens color: Clear
• ⚫ Housing color: Black
• 🛠️ Housing material: Aircraft Grade Aluminum with Mil-Spec hard anodized finish
• 🧱 Bezel material: CNC-machined aluminum (Billet Machined Aluminum)
• 🪟 Lens material: Hard-coated polycarbonate
• 🔩 Mounting hardware material: Stainless steel
• ⚡ Overvoltage protection: Built-in
• ⏳ Average service life: 49,930 hours

📏 Dimensions

• 📏 Length: 30″ (76 cm)
• 📏 Height: 1.6″ (4.06 cm)
• 📏 Depth: 3″ (7.62 cm)
• ⚖️ Weight: 6.5 lb (2.95 kg)

🛡️ Baja Designs Technologies

• uService® – replaceable lenses and optics
• ClearView® – maximum light exactly where it’s needed
• MoistureBlock™ – protection against water, dust and moisture ingress
• DirectSink™ – efficient heat dissipation technology
• 5000K Daylight – natural color temperature that reduces driver fatigue

🛡️ Standards and Protection

• ✅ IP69K – water and dust protection, suitable for high-pressure washing
• ✅ IK10 – high resistance to mechanical impact
• ✅ Meets the requirements of MIL-STD-810G
• ✅ Patent No. D780,964

🚗 Compatibility

Suitable for:

• RAM 2500 (2019–2026)
• RAM 3500 (2019–2026)

⚠️ Important

• Mounts in the lower front grille.
• No drilling, cutting or modifications to the vehicle.
• The LED bar features main lighting and an amber backlight (Backlight).
• The light output of 19,050 lumens is stated by the manufacturer as raw lumens.

🏆 Warranty

🛡️ Limited lifetime warranty from Baja Designs.
