4-Light LED Grille Kit – Ford Ranger 2019–2023

Improve the lighting and look of your Ford Ranger 2019–2023 with the Baja Designs Squadron Pro behind-the-grille kit. The kit includes four powerful LED lights, each delivering 4,095 lumens, for an impressive total output of 16,380 lumens. 💡

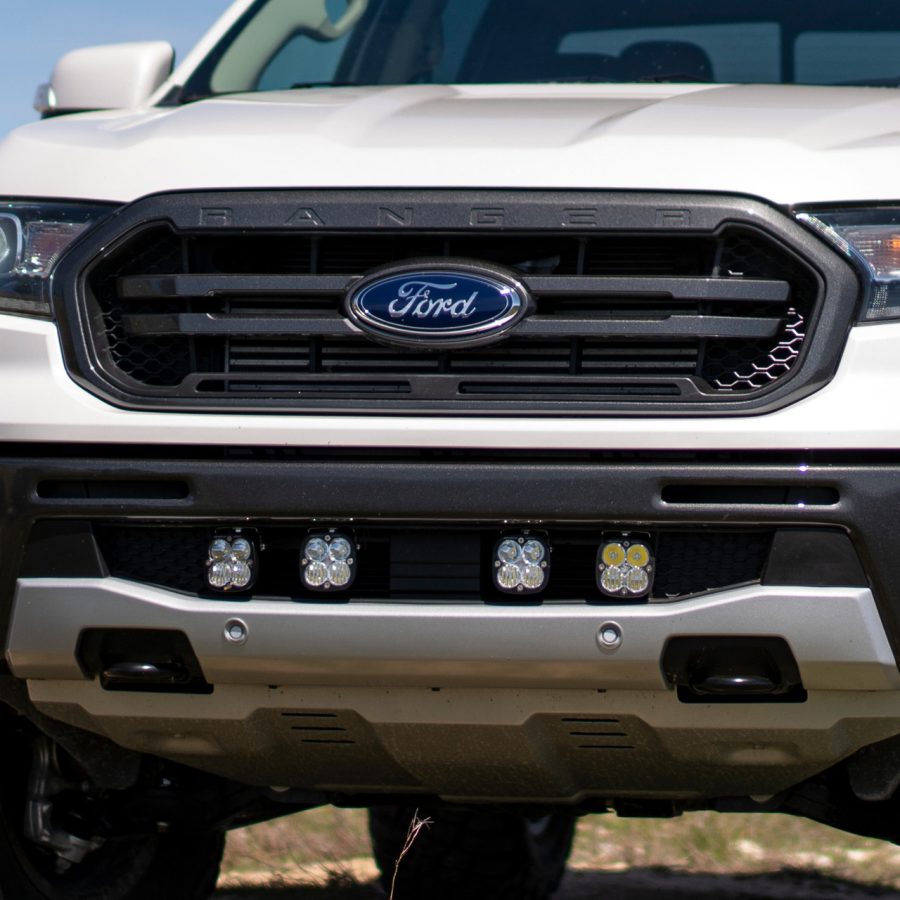

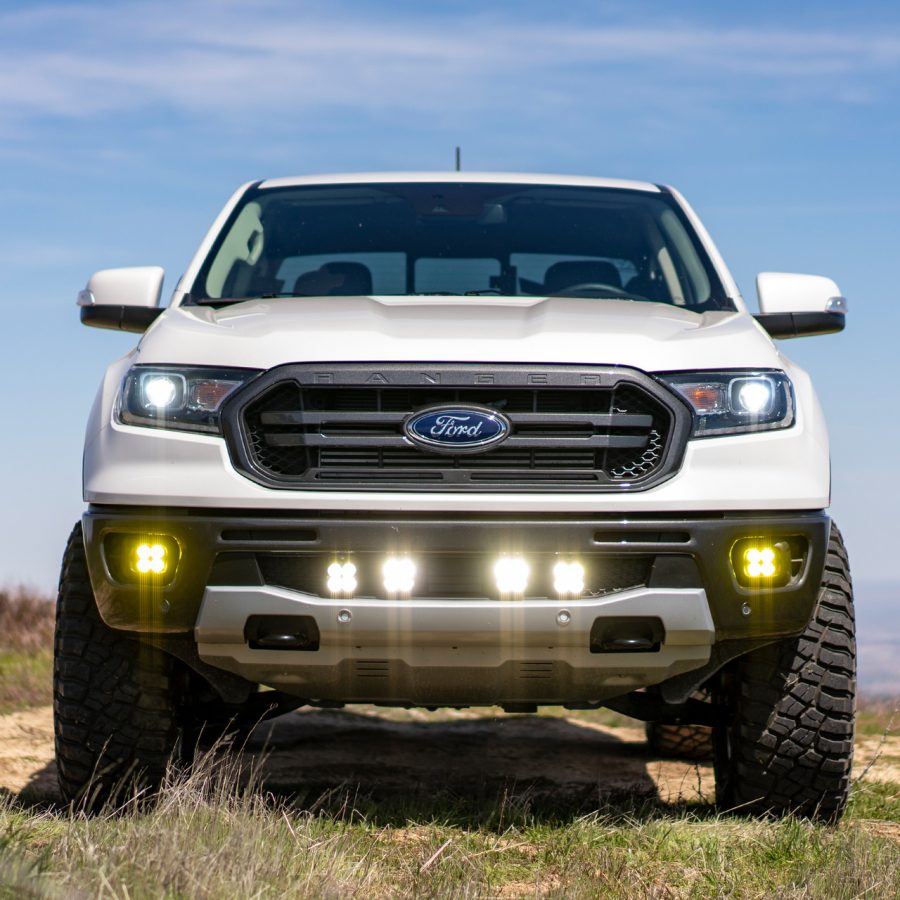

The lights are designed to mount behind the vehicle’s front grille, and the design allows multi-directional adjustment. This lets you aim the light to suit specific conditions and your preferences. 🔧

The kit includes clear lenses with a combo beam, which illuminate zones 1, 2, 3 and 4 at the same time, providing wide, effective illumination of the terrain ahead of the vehicle. 🌙

Thanks to uService technology, the lenses can be swapped for other beam configurations from the compatible range, allowing further customization of the light to suit its purpose. 🔦

The kit is designed for easy installation and includes the necessary cables and mounting hardware. Its rugged construction makes it suitable for harsh off-road conditions. 🏔️

🔥 Key benefits

• 💡 16,380 lumens total output
• 🔦 4 powerful LED lights
• 🎯 Combo beam for zones 1, 2, 3 and 4
• ↔️ Multi-directional light adjustment
• 🚙 Mounts behind the front grille
• 🔧 Customizable with different lenses
• 🛡️ Rugged aluminum construction
• 💧 IP69K
• 🪨 Impact resistance IK10
• ⚡ Built-in overvoltage protection
• ☀️ Light with a color temperature of 5000 K

📦 What’s in the Box

• 4x Squadron Pro – combo beam, clear lenses
• 1x wiring harness – 640117
• 2x splitter harness – 613606
• All necessary mounting hardware

📊 Technical Specifications

Per light:

• Light output: 4,095 lumens
• Power: 41,4 W
• Current draw: 3 A
• Beam pattern: Driving/Combo
• Number of LEDs: 4
• Technology: Cree LED
• Light type: forward-facing
• Lens color: clear
• Housing colour: black
• Housing material: anodized and powder-coated aluminum
• Lens material: polycarbonate with a hard protective coating
• Average service life: 49,930 hours

Dimensions per light:

• Length: 3,07″
• Width: 3,07″
• Depth: 2,77″
• Weight: 0,75 lb

🛡️ Protection and durability

• 💧 IP69K – protection against water, dust and powerful water jets
• 🪨 IK10 – high resistance to mechanical impact
• 🏗️ Durability exceeding the requirements of MIL-STD810G
• ⚡ Built-in overvoltage protection

⭐ Baja Designs advantages

• 🔧 uService – replaceable lenses and optics
• 💡 ClearView – optimized light distribution
• 💧 MoistureBlock – protection from water, rain and submersion
• 🌡️ DirectSink – efficient heat dissipation
• ☀️ 5000 K daylight – natural color perception and less driver fatigue
• 🛡️ Limited lifetime warranty
• 💰 30-day money-back guarantee

🚙 Compatibility

• Ford Ranger 2019–2023
