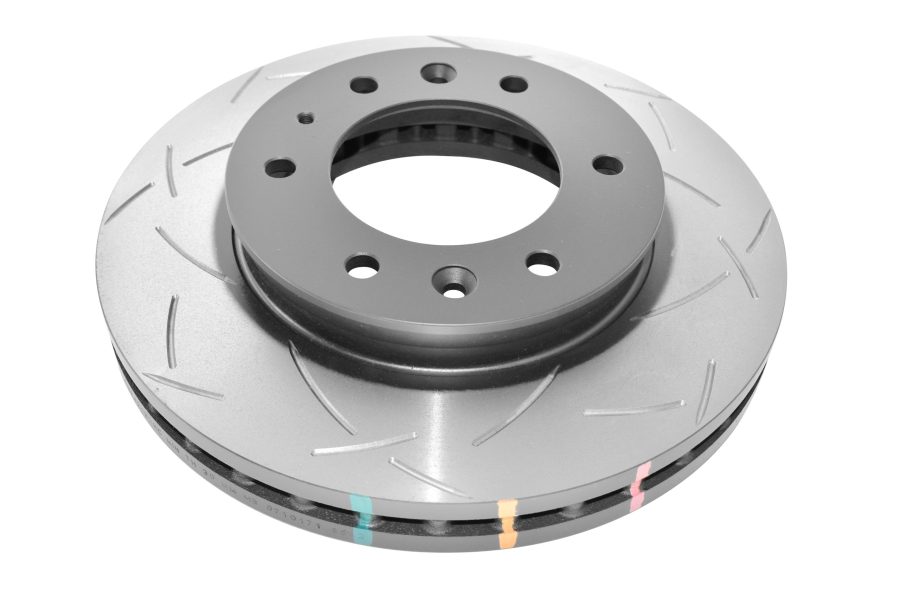

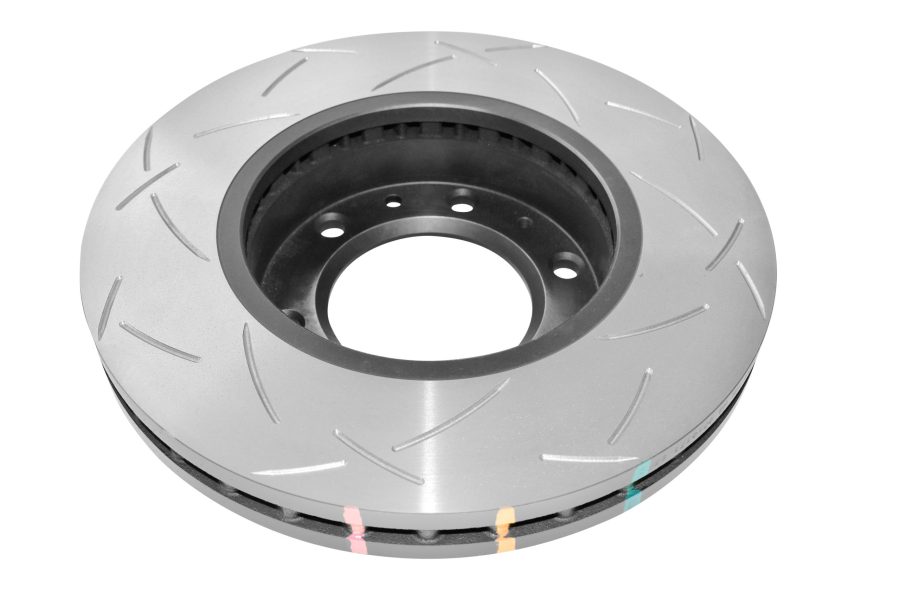

DBA 4000 Series Front Brake Rotor for Ford Ranger

The DBA 4000 Series is a high-performance front brake rotor developed for drivers who want maximum braking performance, better cooling and high resistance in harsh conditions.

It is suitable for everyday driving, off-road use, towing, loaded vehicles and spirited driving.

Key Benefits ⭐

✔ Shorter stopping distance
✔ Improved cooling
✔ Reduced brake overheating
✔ Longer rotor and pad life
✔ Reduced risk of warping and cracking
✔ Smoother, quieter braking
✔ Direct fit with no modifications required

Slot Technology 🔥

✔ 48 precision-machined slots
✔ Reduced vibration and noise
✔ Smoother pedal feel
✔ Better gas and dust dispersal
✔ More consistent braking performance

Ventilation System 🦘

✔ 144 diamond and teardrop ventilation pillars
✔ Up to 30% better cooling
✔ Reduces the risk of overheating
✔ Improves performance in harsh conditions
✔ Extends rotor and pad life

High-Carbon Alloy 🛡️

✔ Increased thermal resistance
✔ Withstands extreme temperatures
✔ Reduces the risk of warping and cracking

Heat Treatment 🌡️

✔ Special heat treatment
✔ Increased resistance under heavy loads
✔ Longer service life

Temperature Indicators 🧪

✔ Track the maximum operating temperature
✔ Help diagnose overheating and wear

Protective Coating 🎨

✔ Corrosion protection
✔ Prevents rust on non-friction areas
✔ Improved appearance

Technical Specifications 📏

✔ Diameter: 301.5 mm
✔ Thickness: 32 mm
✔ Minimum thickness: 30 mm
✔ Height: 60.7 mm
✔ Centre bore: 98 mm
✔ Bolt pattern: 6×139.7
✔ Number of holes: 6
✔ Vented rotor
✔ Series: Stage 4
✔ Certificate: ECE R90
✔ Weight: 10.7 kg

Compatible Pads 🔩

✔ DB2074
✔ DB2074SP
✔ DB2074XP

Benefits in use 🚙

✔ Better braking control
✔ Excellent behaviour when towing
✔ Suitable for off-road and harsh conditions
✔ Reduced overheating under load
✔ More stable performance at high temperatures

Important ⚠️

✔ The price is for 1 rotor
✔ The rotor is a direct replacement for the original
✔ No vehicle modifications required
✔ Fitting with quality pads is recommended
✔ Fitting must be carried out by a qualified workshop

Compatibility 🔧

Ford Ranger

✔ 2011–2019 – 2.2 diesel 2WD
✔ 2011–2019 – 2.2 diesel 4WD
✔ 2011–2019 – 3.2 diesel 4WD
✔ 2019–2023 – 2.0 diesel 130 hp 4WD
✔ 2019–2023 – 2.0 diesel 170 hp 4WD
✔ 2019–2023 – 2.0 Bi-Turbo 213 hp 4WD
✔ 2022+ – 2.0 diesel 170 hp

Mazda BT-50

✔ 2011–2020 – 3.2 diesel

Volkswagen Amarok

✔ 2022+ – 2.0 diesel 170 hp

✔ Fitment: front axle
