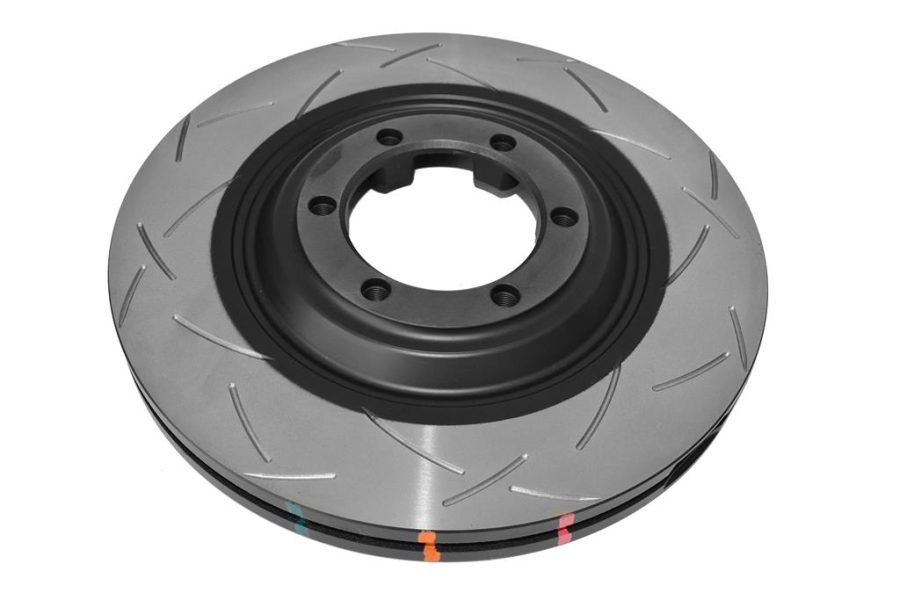

The DBA 4000 Series T3 brake rotor is built for drivers who want maximum braking performance, better cooling and high resistance under heavy loads. Thanks to T3 technology and a high-carbon alloy, the rotor provides stable braking even at extreme temperatures.

The 4000 Series is a preferred choice for off-road vehicles, trailer towing, expeditions and spirited driving.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Key benefits 🔥

✔ Stronger, more consistent braking

✔ Faster heat dissipation

✔ Reduced risk of overheating

✔ Longer rotor and pad life

✔ Reduced risk of warping and cracking

✔ Quieter operation and better pedal feel

✔ Excellent performance under heavy loads

✔ Suitable for off-road and towing

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

DBA technologies 🛠️

✔ T3 slots with a three-sided design

✔ Kangaroo Paw system with 144 cooling elements

✔ High-carbon alloy for better thermal resistance

✔ Thermal Stability Profiling for increased durability

✔ Temperature indicators for monitoring load

✔ Anti-corrosion protective coating

✔ Universal design with no left or right rotor

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Features ⚙️

✔ Kangaroo Paw vented rotor

✔ T3 slotted braking surface

✔ Improved gas and dust dispersal

✔ Better cooling under heavy load

✔ Reduced vibration and noise

✔ Excellent resistance to thermal loads

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Technical Data 📏

✔ Diameter: 300 mm

✔ Thickness: 27 mm

✔ Minimum thickness: 25 mm

✔ Height: 40.3 mm

✔ Inner diameter: 88 mm

✔ Number of holes: 6

✔ Weight: 7.9 kg

✔ Series: Stage 4

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Fits 🚙

Isuzu D-Max

✔ 2.5 TD 4WD (2012–2017)

✔ 1.9 TD 4WD (2017–2020)

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Compatible Pads 🛑

✔ DBA DB1841
