DBA 4000 Series T3 + Xtreme Performance Sport Front Brake Kit for Volkswagen Amarok

DBA 4000 Series T3 + Xtreme Performance is a high-performance front brake kit built for drivers who want maximum braking performance under heavy loads, off-road, towing and spirited driving.

The kit combines DBA 4000 Series T3 slotted rotors with DBA Xtreme Performance pads, delivering strong initial bite, excellent cooling and stable performance at high temperatures.

It is suitable for heavy 4×4 vehicles, SUVs and pickups.

Key Benefits ⭐

✔ Maximum braking performance
✔ Shorter stopping distance
✔ Strong initial bite
✔ Reduced overheating and brake fade
✔ Better cooling under load
✔ Improved pedal feel
✔ Increased resistance in harsh conditions
✔ Direct fit with no modifications required

Kit contents 📦

✔ 2x DBA42776S front rotors – 4000 Series T3
✔ 1 set of DB15001XP front pads
✔ The set contains 4 pads

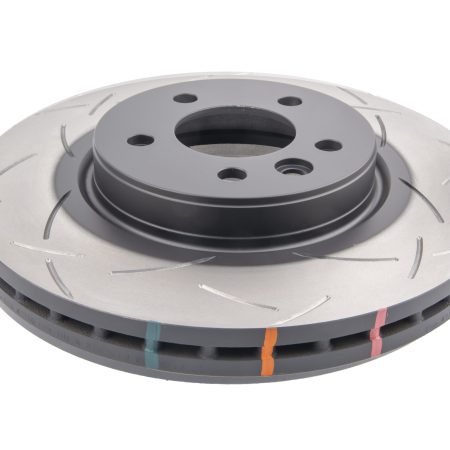

T3 Slotted Rotors 🔧

✔ 48 precision CNC-cut slots
✔ Improved gas and dust dispersal
✔ Better cooling under load
✔ More effective pad bite
✔ Quieter, smoother operation
✔ Universal design with no left or right rotor

Kangaroo Paw Cooling System 🦘

✔ 144 diamond and teardrop ventilation elements
✔ Significantly better cooling
✔ Reduces overheating
✔ Increases braking performance
✔ Extends rotor and pad life

Thermal Stability Profiling (TSP) 🌡️

✔ Special heat treatment
✔ Greater resistance under extreme load
✔ Reduces the risk of warping and cracking

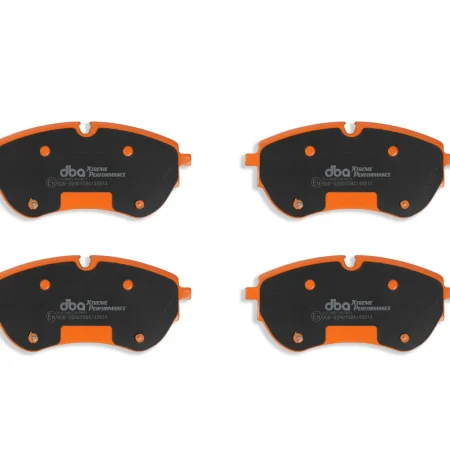

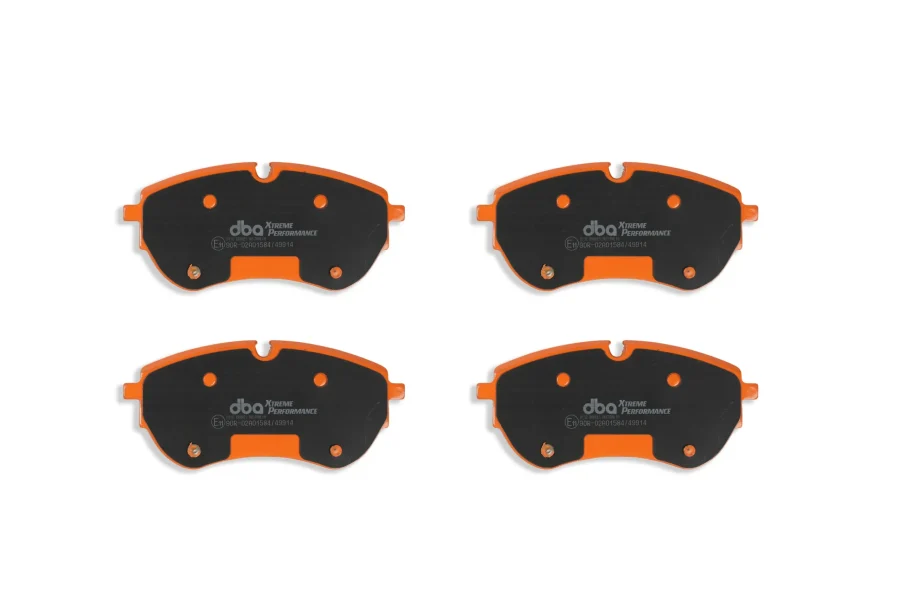

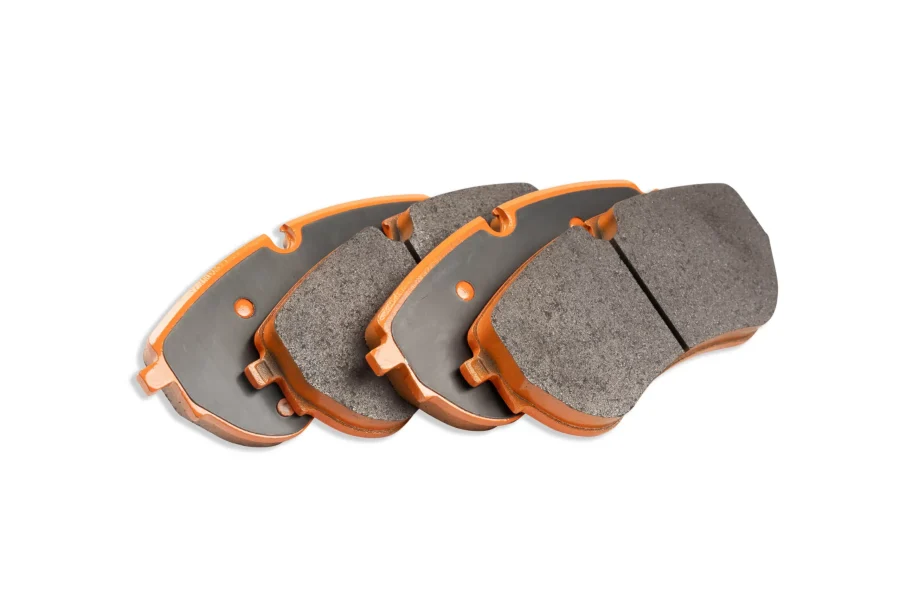

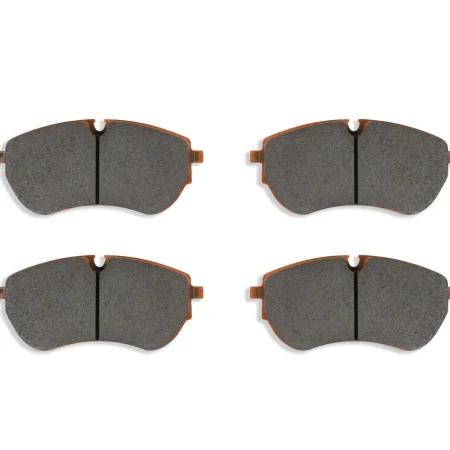

Xtreme Performance Pads 🔥

✔ Semi-metallic friction material with carbon fibres
✔ Friction class G-G
✔ Strong initial bite
✔ Excellent performance at high temperatures
✔ Stable braking performance up to 550°C
✔ Suitable for heavy loads and spirited driving

Technical Specifications 📏

DBA42776S Rotors

✔ Diameter: 332 mm
✔ Thickness: 30 mm
✔ Minimum thickness: 27 mm
✔ Height: 57.1 mm
✔ Vented rotors
✔ 5 holes
✔ Weight: 11.28 kg
✔ ECE R90 certified

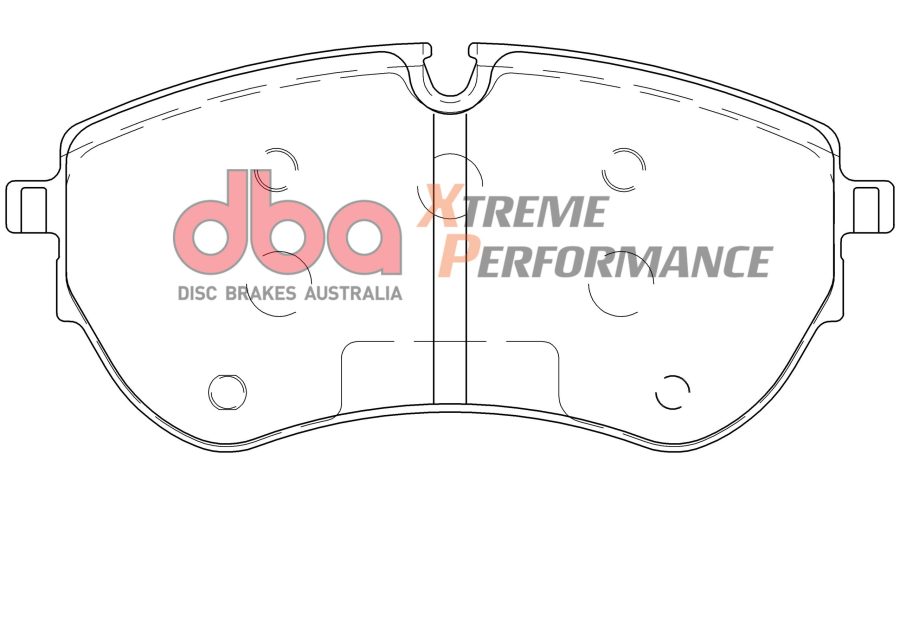

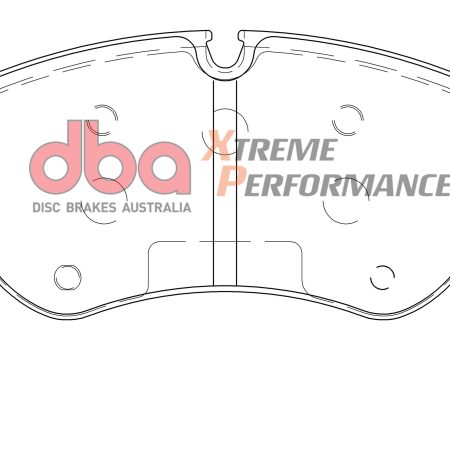

DB15001XP Pads

✔ Width: 163.5 mm
✔ Height: 75.5 mm
✔ Thickness: 18.3 mm
✔ OEM number: 2H6698151A
✔ Weight: 3.1 kg

Important ⚠️

✔ The kit is fully compatible with the original braking system
✔ No vehicle modifications required
✔ Tested rotor and pad combination for maximum performance
✔ Professional fitting is recommended

Compatibility 🔧

Volkswagen Amarok

✔ 2010–2016 – 2.0 TSI 160 hp
✔ 2011–2022 – 2.0 BiTDI 180 hp
✔ 2011–2022 – 2.0 BiTDI 180 hp 4Motion
✔ 2012–2022 – 2.0 TDI 140 hp
✔ 2012–2022 – 2.0 TDI 140 hp 4Motion
✔ 2016–2019 – 3.0 TDI 163 hp
✔ 2016–2020 – 3.0 TDI 163 hp 4Motion
✔ 2016–2020 – 3.0 TDI 204 hp 4Motion
✔ 2016–2022 – 3.0 TDI 224 hp 4Motion
✔ 2018–2022 – 3.0 TDI 258 hp 4Motion
