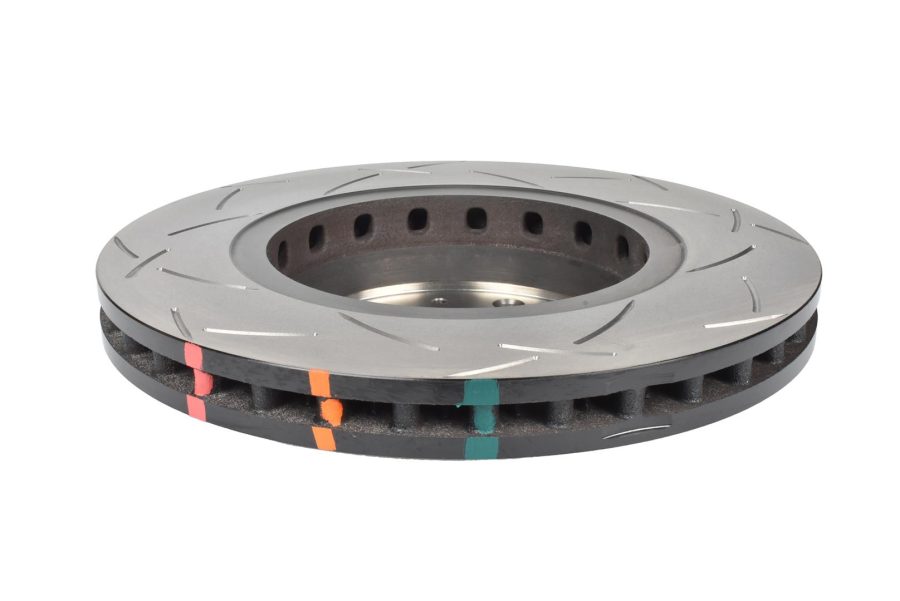

The DBA 4000 Series XS brake rotor is built for Isuzu D-Max drivers who want better braking performance, lower operating temperatures and a longer service life. Thanks to its special drilled and slotted surface, the rotor improves the dispersal of dust, gas and heat, providing stable, confident braking in all conditions.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Key Benefits 🔥

✔ More efficient brake system cooling

✔ Reduced overheating under load

✔ Shorter stopping distance

✔ Better dust and gas dispersal

✔ Reduced risk of warping and cracking

✔ Longer rotor and pad life

✔ Attractive sporty design

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Technology 🛠️

✔ Drilled and slotted braking surface

✔ Ventilation system with 144 cooling pillars

✔ Up to 30% more cooling surface area

✔ Up to 20% better cooling than standard rotors

✔ High-carbon alloy

✔ Heat treatment for increased durability

✔ Temperature indicators for monitoring load

✔ Protective anti-corrosion coating

✔ Reduced vibration and smoother brake system operation

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Technical Data 📏

✔ Diameter: 320 mm

✔ Thickness: 30 mm

✔ Minimum permissible thickness: 28 mm

✔ Height: 61 mm

✔ Inner diameter: 101 mm

✔ Number of holes: 6

✔ Fitment: front axle

✔ Weight: 10.11 kg

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Fits 🚙

Isuzu D-Max

✔ 1.9 DDI (2020+)

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Compatible Pads 🛑

✔ DBA DB15074
