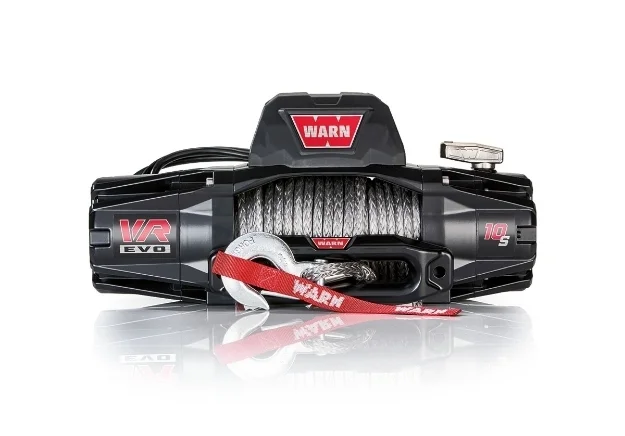

Warn VR EVO 10-S Winch (103253)

Warn VR EVO 10-S is a modern electric winch with synthetic rope, built for pickups, Jeeps and SUVs. It delivers the same pulling power as the standard VR EVO 10, with the added benefits of lighter, safer synthetic rope. With IP68 sealing, a reliable Albright contactor and a dual remote control, this model is ideal for serious off-roading and regular use.

⚠️ Note: A compatible bumper or winch mounting plate is required for installation.

⭐ Key Benefits

• Synthetic rope – lighter and safer

• Suitable for pickups, Jeeps and SUVs

• Waterproof construction (IP68)

• 2-in-1 remote control (wireless + wired)

• High-quality Albright contactor

• Fast line speed with low current draw

• Relocatable control pack for flexible mounting

• Rugged aluminum construction

• Limited lifetime warranty (mechanical) + 7 years (electrical)

📦 What’s in the Box

• Warn VR EVO 10-S winch (12V)

• Synthetic rope (≈27.4 m / 90 ft, ~9.5 mm)

• Aluminum hawse fairlead

• Remote control (wireless + wired, ~3.5 m)

• Control pack (relocatable)

• Mounting hardware

📊 Technical Specifications

• Model: 103253

• Type: electric winch

• Power: 12V DC

• Max. pulling capacity: 4,536 kg (10,000 lbs)

• Line speed under load: ~5.2 ft/min

• Current draw: up to 358 A

• Motor: series wound

• Gearbox: 3-stage planetary (218:1)

• Brake: spring-applied

• Free spooling: yes

• Rope: synthetic, ~9.5 mm x 27.4 m

• Fairlead: aluminum (hawse)

• Drum material: steel

• Mounting: 4-bolt pattern (10” x 4.5”)

• Protection: IP68 (water and dust)

• Remote: wireless + wired (~3.5 m)

• Color: black
