4-Light LED Grille Kit – Ford Ranger 2019–2023

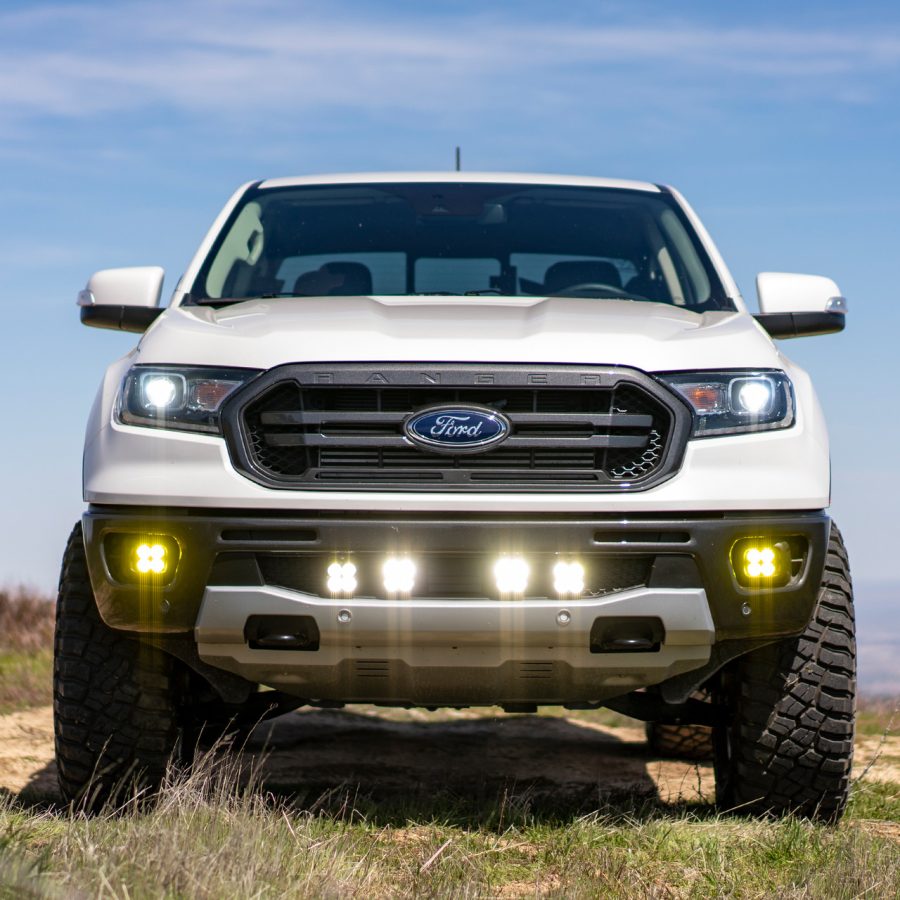

The Baja Designs Squadron Sport behind-the-grille kit is an excellent choice for owners of the Ford Ranger 2019–2023 who want to improve their lighting while giving the vehicle a more aggressive look. 🚙

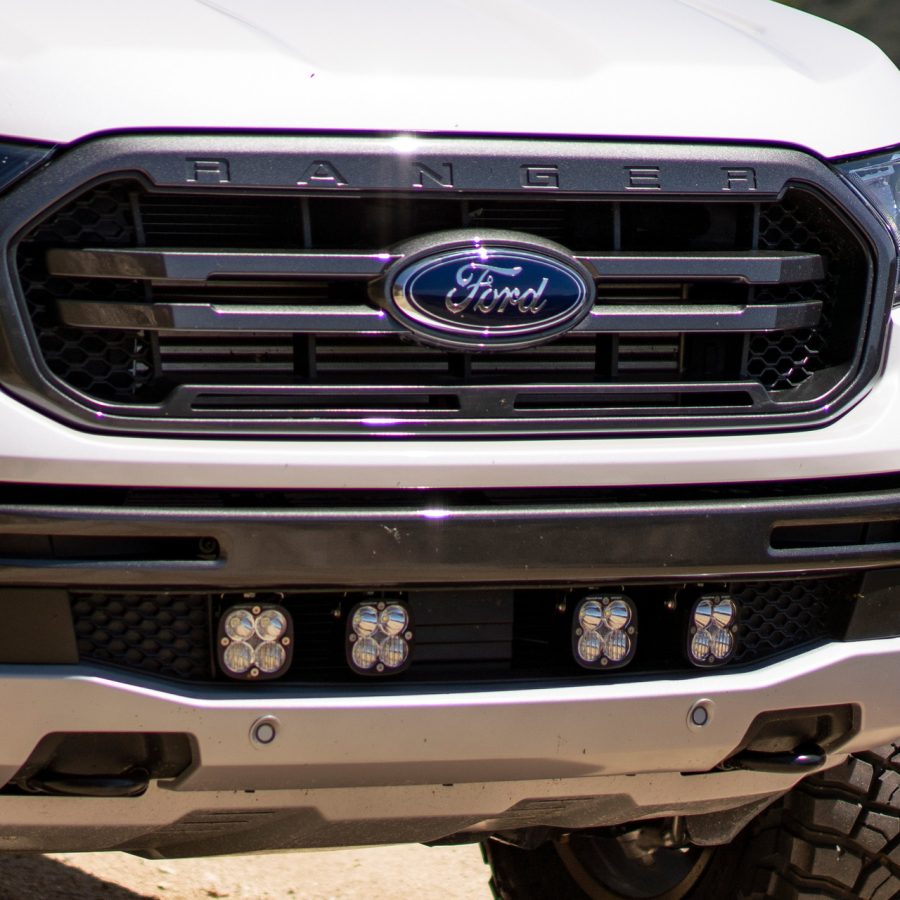

The kit includes four Squadron Sport LED lights, each rated at 3,162 lumens, for a total output of 12,648 lumens. The lights are designed to mount behind the front grille and feature multi-directional adjustment, allowing the light to be aimed precisely as needed. 💡

As standard, the lights are fitted with clear lenses and a combo beam, which illuminates zones 1, 2, 3 and 4 at the same time. This provides a good combination of width and reach on rough terrain. 🌙

Thanks to the uService system, the beam configuration can be changed by using different compatible lenses. This lets you adapt the lights to their specific purpose and driving conditions. 🔧

The kit includes the necessary cables, splitters and mounting hardware for installation. The rugged construction of the lights is designed to withstand harsh off-road conditions. 🏔️

🔥 Key benefits

• 💡 12,648 lumens total output
• 🔦 4 powerful LED lights
• 🎯 Combo beam
• 🌐 Illuminates zones 1, 2, 3 and 4
• ↔️ Multi-directional adjustment
• 🚙 Mounts behind the front grille
• 🔧 Interchangeable lenses
• 💧 IP69K
• 🪨 Impact resistance IK10
• ⚡ Built-in overvoltage protection
• ☀️ Light color temperature: 5000 K

📦 What’s in the Box

• 4x Squadron Sport – combo beam, clear lenses
• 1x wiring harness – 640117
• 2x splitter harness – 613606
• All necessary mounting hardware

📊 Technical Specifications

Per light:

• Light output: 3,162 lumens
• Power: 30,36 W
• Current draw: 2,2 A
• Beam pattern: Driving/Combo
• Number of LEDs: 4
• Technology: LED
• Light type: forward-facing
• Lens color: clear
• Housing colour: black
• Housing material: powder-coated die-cast aluminum
• Lens material: polycarbonate with a hard protective coating
• Average service life: 49,930 hours

Dimensions per light:

• Length: 3,07″
• Height: 3,07″
• Depth: 2,77″
• Weight: 0,75 lb

🛡️ Protection and durability

• 💧 IP69K – protection against water, dust and powerful water jets
• 🪨 IK10 – high resistance to mechanical impact
• 🏗️ Durability exceeding the requirements of MIL-STD810G
• ⚡ Built-in overvoltage protection

⭐ Baja Designs advantages

• 🔧 uService – replaceable lenses and optics
• 💡 ClearView – optimized light distribution
• 💧 MoistureBlock – protection from water, rain and submersion
• 🌡️ DirectSink – efficient heat dissipation
• ☀️ 5000 K daylight – natural color perception and less driver fatigue
• 🛡️ Limited lifetime warranty
• 💰 30-day money-back guarantee

🚙 Compatibility

• Ford Ranger 2019–2023
