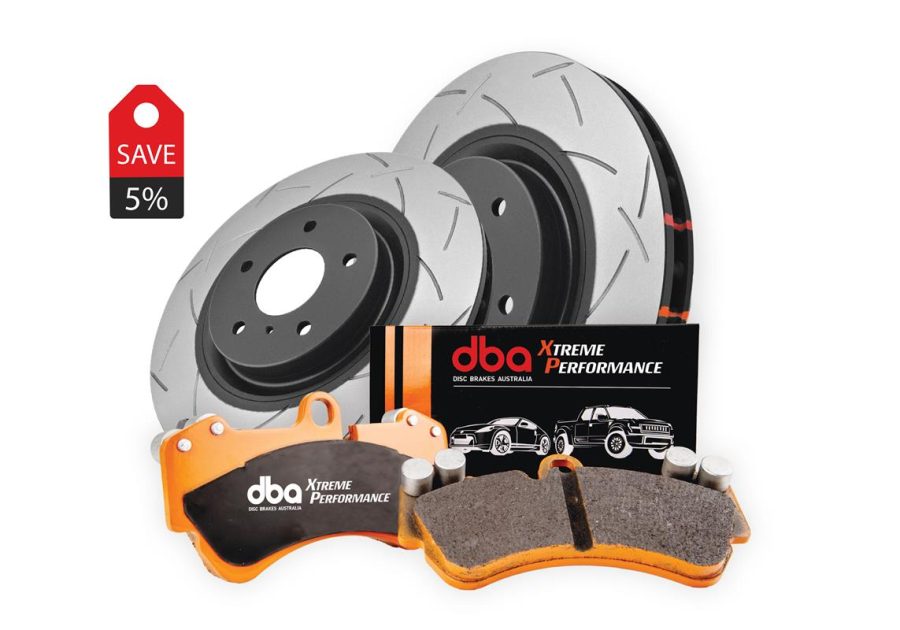

DBA 4000 Series T3 Front Brake Kit + Xtreme Performance Pads for Dodge RAM 1500

The DBA brake kit combines high-performance DBA 4000 Series T3 slotted rotors with DBA Xtreme Performance (XP) pads, built for drivers who want maximum initial bite, high braking performance and reliable operation under extreme loads.

The kit is suitable for spirited everyday driving, heavy towing and off-road use.

Kit contents 📦

✔ 2x DBA42442S – DBA 4000 Series T3 front rotors
✔ 1x DB7991XP – DBA Xtreme Performance front pads
✔ The DB7991XP set contains 4 pads

Key Benefits ⭐

✔ Strong initial bite
✔ Consistent braking performance at low and high temperatures
✔ Suitable for heavy loads and towing
✔ Excellent cooling
✔ Reduced brake fade
✔ Direct fit with no vehicle modifications required

T3 Slot Technology 🛠️

✔ CNC-machined T3 slots
✔ Improved pad gas dispersal
✔ Better bite
✔ Reduced vibration and noise
✔ Smoother pedal feel

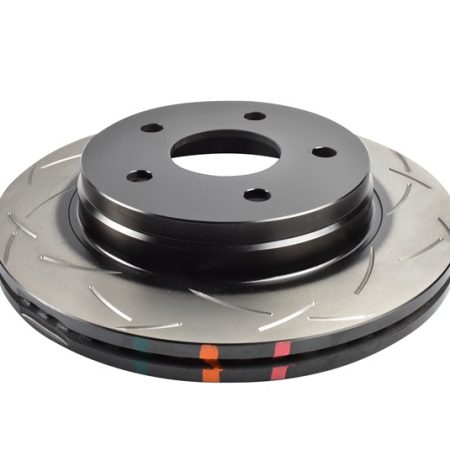

DBA 4000 Series Rotors 🔥

✔ Kangaroo Paw ventilation
✔ Better cooling under load
✔ Thermal Stability Profiling (TSP)
✔ Reduced risk of warping and cracking
✔ High-carbon alloy for maximum durability

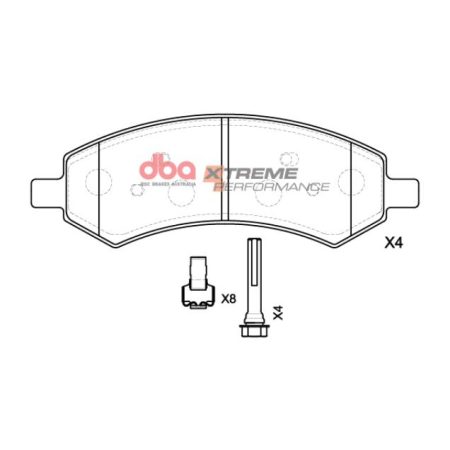

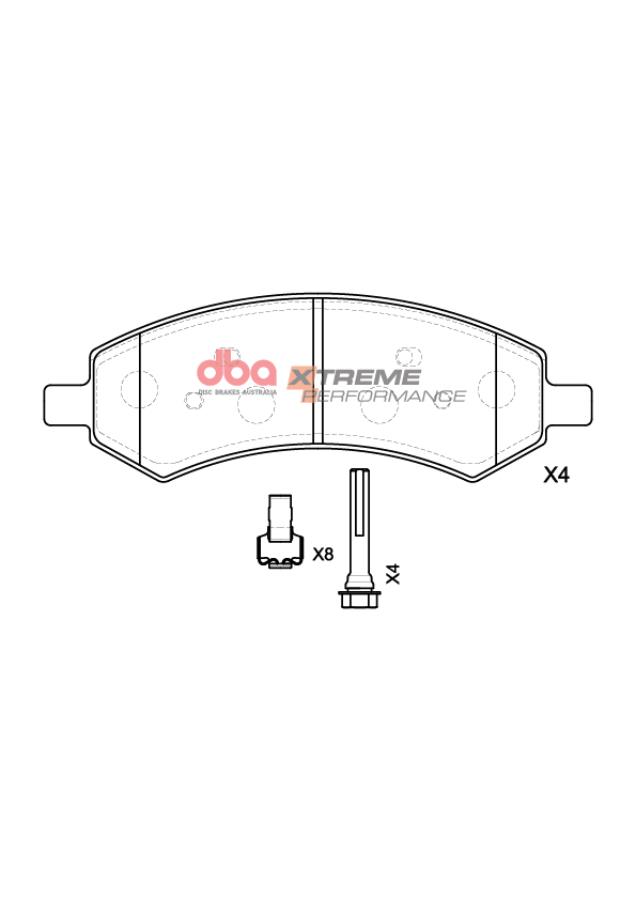

DBA Xtreme Performance Pads 🚙

✔ Semi-metallic carbon fibre material
✔ G-G friction rating
✔ Average friction coefficient: 0.45 mu
✔ Excellent performance at high temperatures
✔ Consistent braking performance up to 550°C (1022°F)

Rotor Technical Specifications 📏

✔ Series: DBA 4000 Series T3
✔ Diameter: 336 mm
✔ Thickness: 28 mm
✔ Minimum thickness: 26.4 mm
✔ Height: 68 mm
✔ Centre bore: 78.6 mm
✔ Number of holes: 5
✔ Type: Vented rotor
✔ Stage: Stage 4
✔ ECE R90: E1190R02/0660532*00
✔ Weight: 10.4 kg
✔ Fitment: Front axle

Pad Technical Specifications 🔩

✔ OEM number: 05143350AB
✔ Width: 177.7 mm
✔ Height: 61.2 mm
✔ Thickness: 17.7 mm
✔ Weight: 2.7 kg
✔ The set contains 4 pads

Benefits in Use 🚗

✔ Shorter stopping distance
✔ Maximum braking force under load
✔ Excellent performance when towing and off-road
✔ Reduced overheating
✔ Suitable for spirited and sport driving

Compatibility 🔧

Dodge RAM 1500

✔ 2006–2011 – 2WD
✔ 2006–2011 – 4WD
✔ 2011–2019 – 3.7
✔ 2011–2019 – 4.7
✔ 2011–2019 – 5.7
✔ 2014–2019 – 3.0 TD

RAM TRUCKS 1500

✔ 2011–2019 – 3.7
✔ 2011–2019 – 4.7
✔ 2011–2019 – 5.7
✔ 2014–2019 – 3.0 TD

Important ⚠️

✔ Proper bedding-in of the new rotors and pads is recommended.
✔ Suitable for harsh conditions, towing and sport driving.
✔ To be fitted by a qualified workshop.
