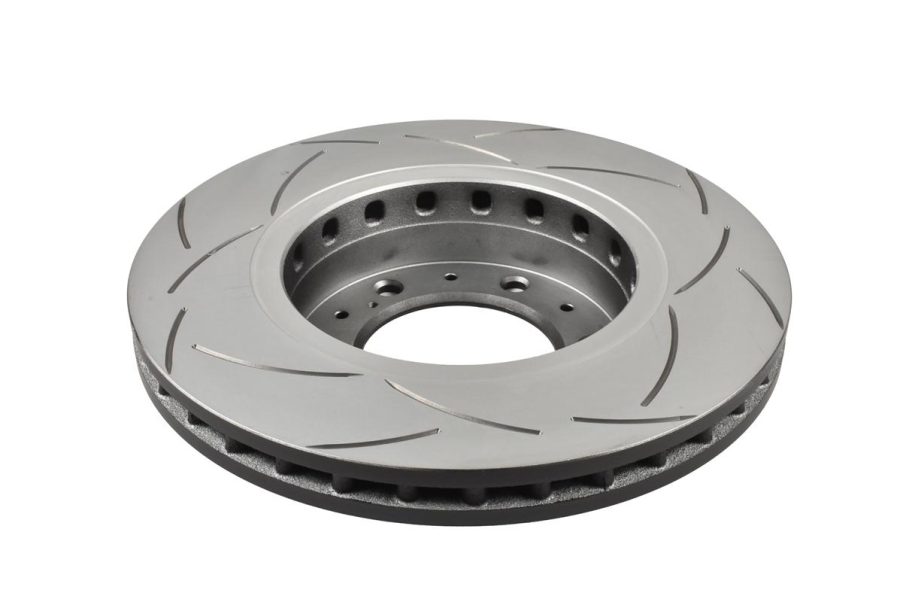

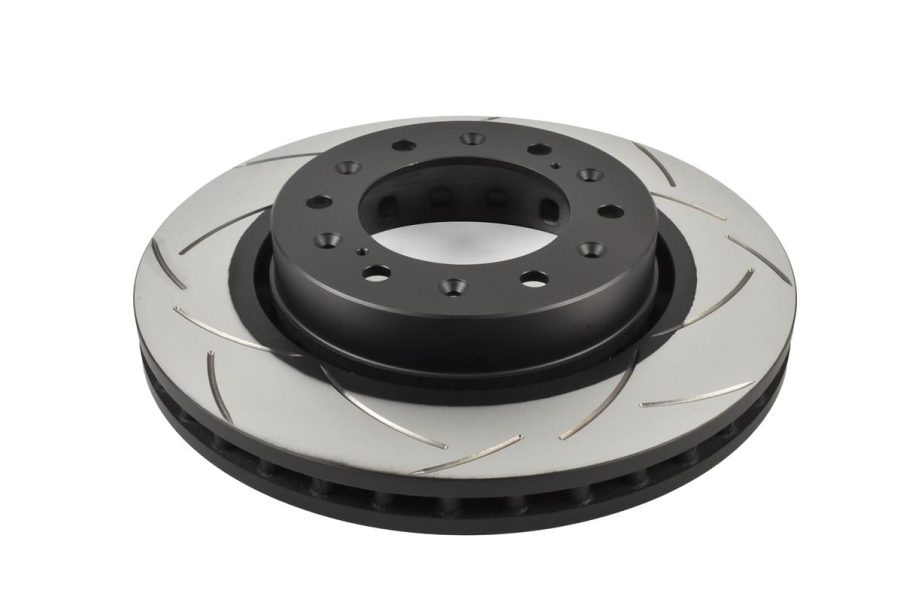

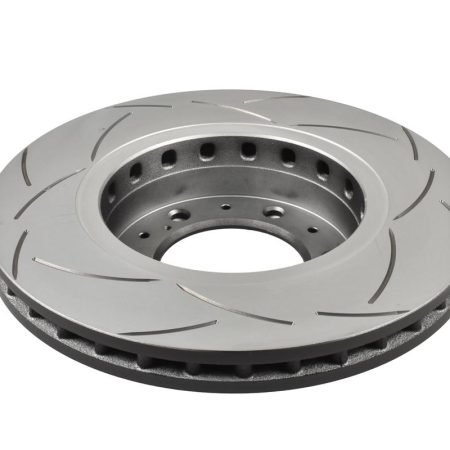

The DBA 4000 Series T3 brake rotor is designed for Isuzu D-Max drivers who want maximum braking performance, better cooling and greater durability under heavy loads. Thanks to its special slots and advanced ventilation system, the rotor delivers more consistent, confident braking even in extreme conditions.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Key benefits 🔥

✔ Faster braking system response

✔ Better heat dissipation

✔ Reduced brake overheating

✔ More efficient dust and gas dispersal

✔ Longer rotor and pad life

✔ Reduced risk of warping and cracking

✔ Quieter, smoother brake system operation

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Technology 🛠️

✔ 48 precision-machined slots

✔ Special slot shape to reduce vibration and noise

✔ Universal design – no left or right rotor

✔ Ventilation system with 144 cooling pillars

✔ Up to 30% more cooling surface area

✔ Up to 20% better cooling than standard rotors

✔ High-carbon alloy

✔ Heat treatment for maximum durability

✔ Temperature indicators for monitoring load

✔ Protective anti-corrosion coating

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Technical Data 📏

✔ Diameter: 320 mm

✔ Thickness: 30 mm

✔ Minimum permissible thickness: 28 mm

✔ Height: 61 mm

✔ Inner diameter: 101 mm

✔ Number of holes: 6

✔ Fitment: front axle

✔ Weight: 10.2 kg

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Fits 🚙

Isuzu D-Max

✔ 1.9 DDI (2020+)

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Compatible Pads 🛑

✔ DBA DB15074
