This grille mount kit is designed specifically for the Land Rover Defender (2020+) and offers a professional way to integrate a Lazer LED light bar without removing the front grille or bumper.

The mounting brackets are precision-engineered for the vehicle’s original center grille and provide secure fixing with a factory (OE) look. For extra strength, the kit includes self-tapping plastic screws that reinforce the mounting points.

The kit is available for the following light bar models:

• Linear-18 Standard
• Linear-18 Elite
• Linear-18 Elite i-LBA
• Linear-18 Elite+

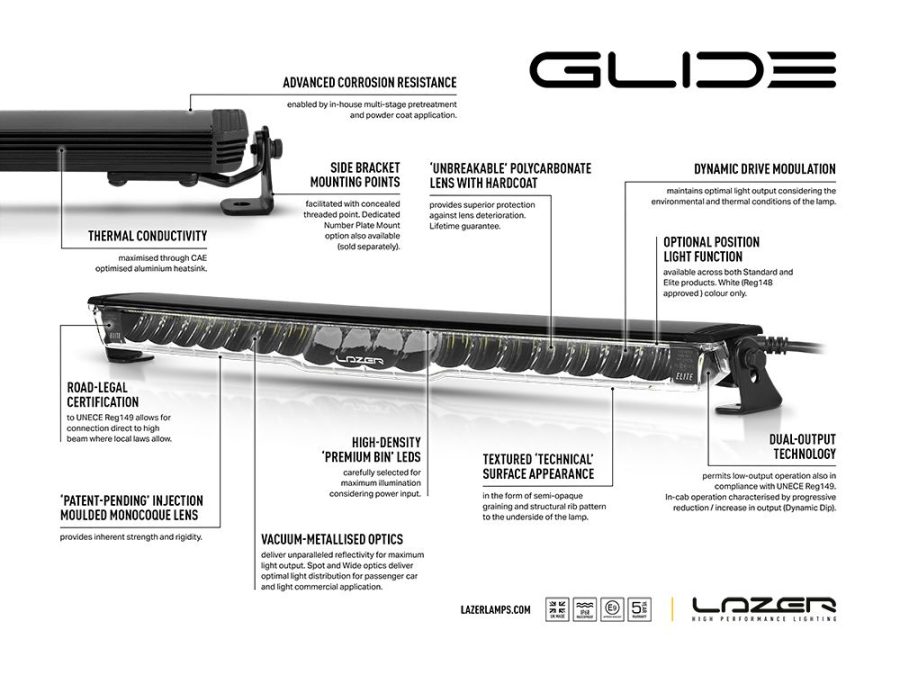

• Glide Standard
• Glide Elite

The mounting brackets are made from a high-strength, UV-stabilized composite that resists weather, chemicals and sustained loads. The included cutting templates ensure precise installation and a perfect fit to the grille.

The kit also includes a single-lamp wiring harness, plus all the fixings needed for a quick, secure installation.

On vehicles equipped with Automatic High Beam Assist or LED Matrix headlights, a standard 12V high-beam control signal may not be available. In these cases, the manufacturer recommends using the Lazer CANNY Interface.

⚠️ Important

• This kit is designed for the Land Rover Defender (2020+) only.
• It is intended only for the Lazer Linear-18 and Lazer Glide.
• The warranty does not cover the mounting brackets if they are used with lamps from other manufacturers.
• Installation is done without removing the front grille or bumper.
• Precision cutting templates are included in the kit.
• A single-lamp wiring harness is included.
• On vehicles with Automatic High Beam Assist or LED Matrix headlights, a Lazer CANNY Interface may be required.

⭐ Key Features

• Designed specifically for the Land Rover Defender (2020+)
• Mounts in the original center grille
• Factory (OE) look
• Compatible with Linear-18 Standard
• Compatible with Linear-18 Elite
• Compatible with Linear-18 Elite i-LBA
• Compatible with Linear-18 Elite+
• Compatible with Glide Standard
• Compatible with Glide Elite
• Mounting brackets made from high-strength, UV-resistant composite
• Cutting templates included
• Single-lamp wiring harness included
• Self-tapping screws included for extra reinforcement
• Fully road-legal (depending on the selected version)
• 5-year warranty
• Made in the UK

📦 What’s in the Box

• Grille mount kit (with cutting templates)
• 1x LED light bar (depending on the selected model)
• Single-lamp wiring harness
• Mounting hardware
• Self-tapping plastic screws
• Installation instructions

🔧 Technical Specifications

🔦 Linear-18 Standard

General

• Operating voltage: 10–32V DC
• LED lifespan: 50 000 hours
• Weight: 1.1 kg

Lighting

• Total luminous flux: 6750 lm
• Effective luminous flux in the driver’s field of view: 4806 lm
• Color temperature: 5000K

Electrical Specifications

• Power consumption: 63 W
• Current draw at 14.4V: 4.4 A
• Connector: 2-Pin Superseal (+25 cm cable)

🛡️ Certification

• High-beam approval: ECE R112 (Ref. 30)
• Ingress protection: IP68
• EMC: ECE R10
• ISO 9227
• ISO 7637-2

💡 Light Output

• Horizontal / vertical angle: 56° / 13°
• 0.25 lux: 855 m
• 0.5 lux: 605 m
• 1 lux: 428 m
• 3 lux: 247 m

🔦 Glide Standard (Boost)

General

• Operating voltage: 10–32V DC
• LED lifespan: 50 000 hours
• Weight: 0.68 kg

Lighting

• Total luminous flux: 11 500 lm
• Effective luminous flux in the driver’s field of view: 6958 lm
• Color temperature: 5000K

Electrical Specifications

• Power consumption: 120 W
• Current draw at 14.4V: 8.3 A
• Connector: 2-Pin / 3-Pin Superseal (+25 cm cable)

🛡️ Certification

• High-beam approval: ECE R149 (Ref. 12.5*)
• Ingress protection: IP68
• EMC: ECE R10
• ISO 9227
• ISO 7637-2

💡 Light Output

• Horizontal / vertical angle: 60° / 13°
• 0.25 lux: 1095 m
• 0.5 lux: 775 m
• 1 lux: 548 m
• 3 lux: 316 m

🔦 Linear-18 Elite

General

• Operating voltage: 10–32V DC
• LED lifespan: 50 000 hours
• Weight: 1.1 kg

Lighting

• Total luminous flux: 13 500 lm
• Effective luminous flux in the driver’s field of view: 9612 lm
• Color temperature: 5000K

Electrical Specifications

• Power consumption: 130 W
• Current draw at 14.4V: 9 A
• Connector: 2-Pin Superseal (+25 cm cable)

🛡️ Certification

• High-beam approval: ECE R112 (Ref. 2×25)
• Ingress protection: IP68
• EMC: ECE R10
• ISO 9227
• ISO 7637-2

💡 Light Output

• Horizontal / vertical angle: 64° / 15°
• 0.25 lux: 1023 m
• 0.5 lux: 723 m
• 1 lux: 511 m
• 3 lux: 295 m

🔦 Glide Elite (Boost)

General

• Operating voltage: 10–32V DC
• LED lifespan: 50 000 hours
• Weight: 0.68 kg

Lighting

• Total luminous flux: 12 800 lm
• Effective luminous flux in the driver’s field of view: 8012 lm
• Color temperature: 5000K

Electrical Specifications

• Power consumption: 130 W
• Current draw at 14.4V: 9.2 A
• Connector: 2-Pin / 3-Pin Superseal (+25 cm cable)

🛡️ Certification

• High-beam approval: ECE R149 (Ref. 12.5*)
• Ingress protection: IP68
• EMC: ECE R10
• ISO 9227
• ISO 7637-2

💡 Light Output

• Horizontal / vertical angle: 66° / 14°
• 0.25 lux: 1249 m
• 0.5 lux: 883 m
• 1 lux: 624 m
• 3 lux: 361 m

🔦 Linear-18 Elite+

General

• Operating voltage: 10–32V DC
• LED lifespan: 50 000 hours
• Weight: 1.1 kg

Lighting

• Total luminous flux: 14 850 lm
• Effective luminous flux in the driver’s field of view: 10 573 lm
• Color temperature: 5000K

Electrical Specifications

• Power consumption: 134 W
• Current draw at 14.4V: 9.9 A
• Connector: 3-Pin Aptiv (+25 cm cable)

🛡️ Certification

• High-beam approval: ECE R149 (Ref. 27.5*)
• Ingress protection: IP68
• EMC: ECE R10
• ISO 9227
• ISO 7637-2

💡 Light Output

• Horizontal / vertical angle: 84° / 20°
• 0.25 lux: 1152 m
• 0.5 lux: 815 m
• 1 lux: 576 m
• 3 lux: 333 m

🔦 Linear-18 Elite i-LBA (Boost)

General

• Operating voltage: 10–32V DC
• LED lifespan: 50 000 hours
• Weight: 1.1 kg

Lighting

• Total luminous flux: 18 000 lm
• Effective luminous flux in the driver’s field of view: 12 816 lm
• Color temperature: 5000K

Electrical Specifications

• Power consumption: 135 W
• Current draw at 14.4V: 15 A
• Connector: 4-Pin Deutsch DT (+25 cm cable)

🛡️ Certification

• High-beam approval: ECE R112 (Ref. 17.5*)
• Ingress protection: IP68
• EMC: ECE R10
• ISO 9227
• ISO 7637-2

💡 Light Output

• Horizontal / vertical angle: 60° / 20°
• 0.25 lux: 1043 m
• 0.5 lux: 738 m
• 1 lux: 522 m
• 3 lux: 301 m

💡 Effective Luminous Flux

Effective luminous flux in the driver’s field of view shows how much light actually illuminates the zone ±45° left/right and ±10° up/down. It gives a more accurate picture of real-world illumination while driving than total luminous flux.

💧 IP68 Protection

All Lazer lamps are designed to the IP68 standard. Every lamp produced is individually tested by full submersion in water before it leaves Lazer’s UK factory, ensuring reliable performance in rain, dust, mud and harsh operating conditions.
